4. If not installed, install the crankarms, see "Crankarm Assembly Replacement" on
page151.
Input Drive Assembly Shaft (axle) alignment

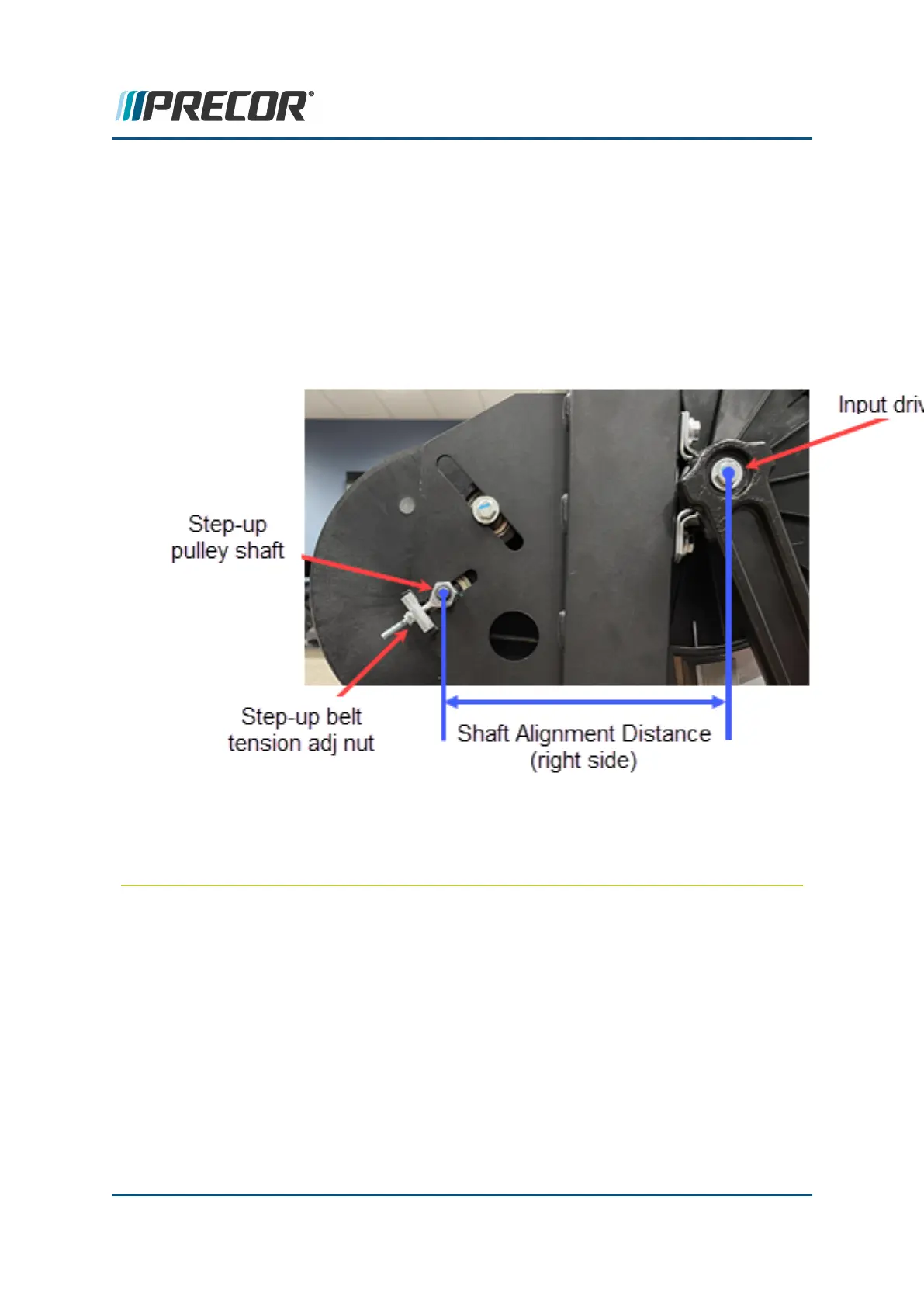

5. Align the Input Drive shaft (axle) to the Step-up shaft (axle).
a. Measure the right side and left side distances from the center of the input drive
shaft to the center of the step-up pulley shaft. The measured left and right side
shaft alignment distances should be the same. If not, adjust the left side dis-
tance so that it equals the right side distance.
Drive belt tension adjustment
6. Use an 11/16” socket to loosen (do not remove) the left and right step-up pulley shaft
nuts.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 54
5 Adjustment Procedures
Input Drive and Step-up Belt Tension Adjustment
