Printronix P5000 - Page 242

242
Chapter 5 Section II: Illustrated Parts Lists

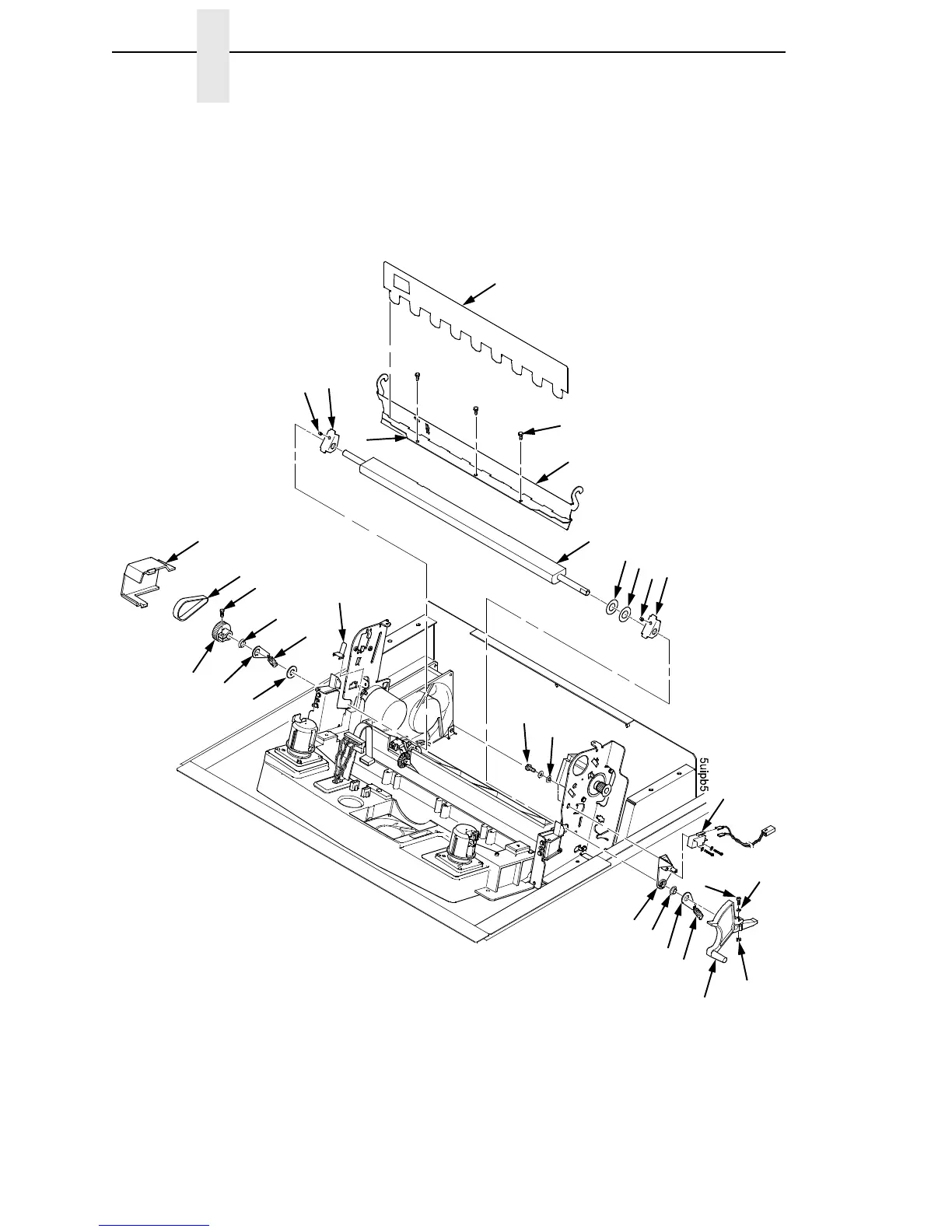

Figure 42. Platen
NOTE:
Black tape faces
paper motion
detector.
NOTE:
Item 25: Platen
Hardware Kit
1
2
4
3
5
6
7
8
8
1
2
9
10
13
12
11
14
15
16
17
18
19
24
23
22
18
21
17
26
16
20
