Chapter 5 Section II: Illustrated Parts Lists

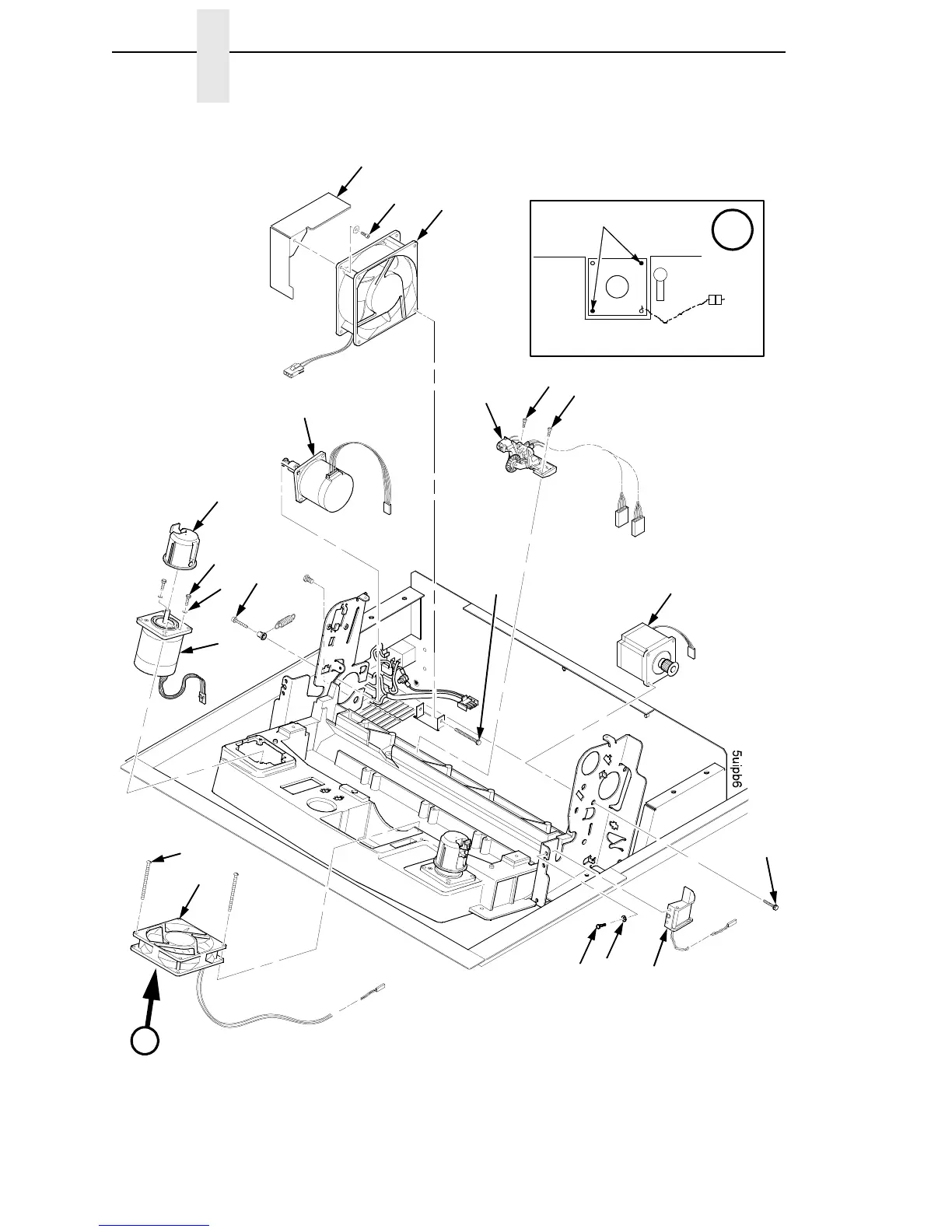

Figure 43. Motors, Fans, and Paper Detector Switch
A
See detail above
1
2
11
15
13
14
17
10
5
3
4
4
18
2
(2 ea.)
6
7
8
9
16
17
Install screws here.
Route cable under
base casting
Hammer Bank Fan
Top View
A
