Printronix P5000 - Page 353

353
25. Gather the stacker rail cable, elevator I/O cable, logic cable, and power
cable. Route the cables outboard of the elevator assembly. (Figure 80.)

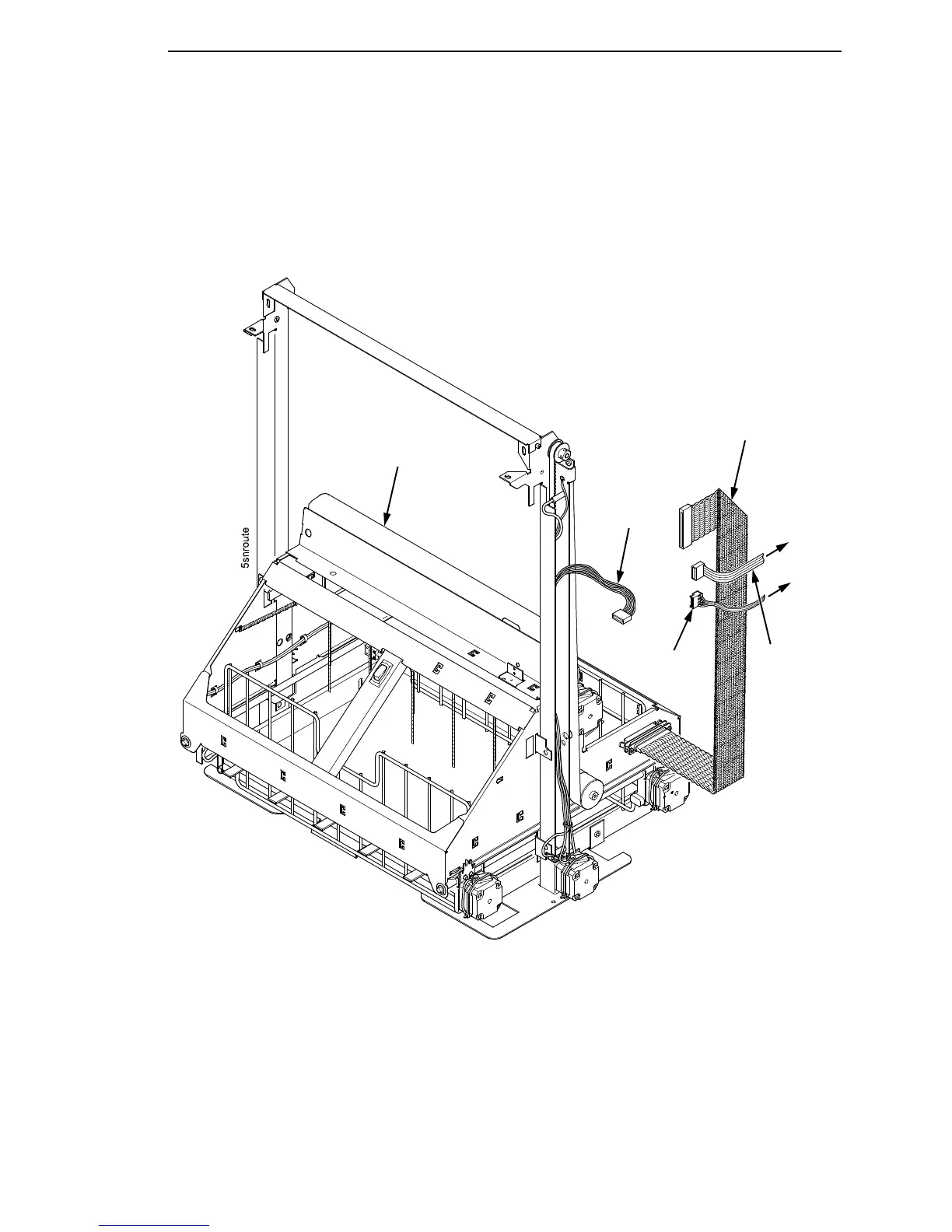

Figure 80. Stacker Cable Routing
Elevator I/O
Cable
Stacker
Power Cable
Stacker
Logic
Cable
Rail Cable
Elevator
Assembly
(To
Card
Cage)
(To
Control
Panel)
