PrismJET 54 Gen2 OPERATION MANUAL Before using
3.6 Adjust Print 103
3.6.4.2 Custom Rough Adjustment Pattern
Perform micro adjustment when the degree of misalignment is large.
This menu consists of the following menus.
3.6.4.2.1 Rough Pattern ALL

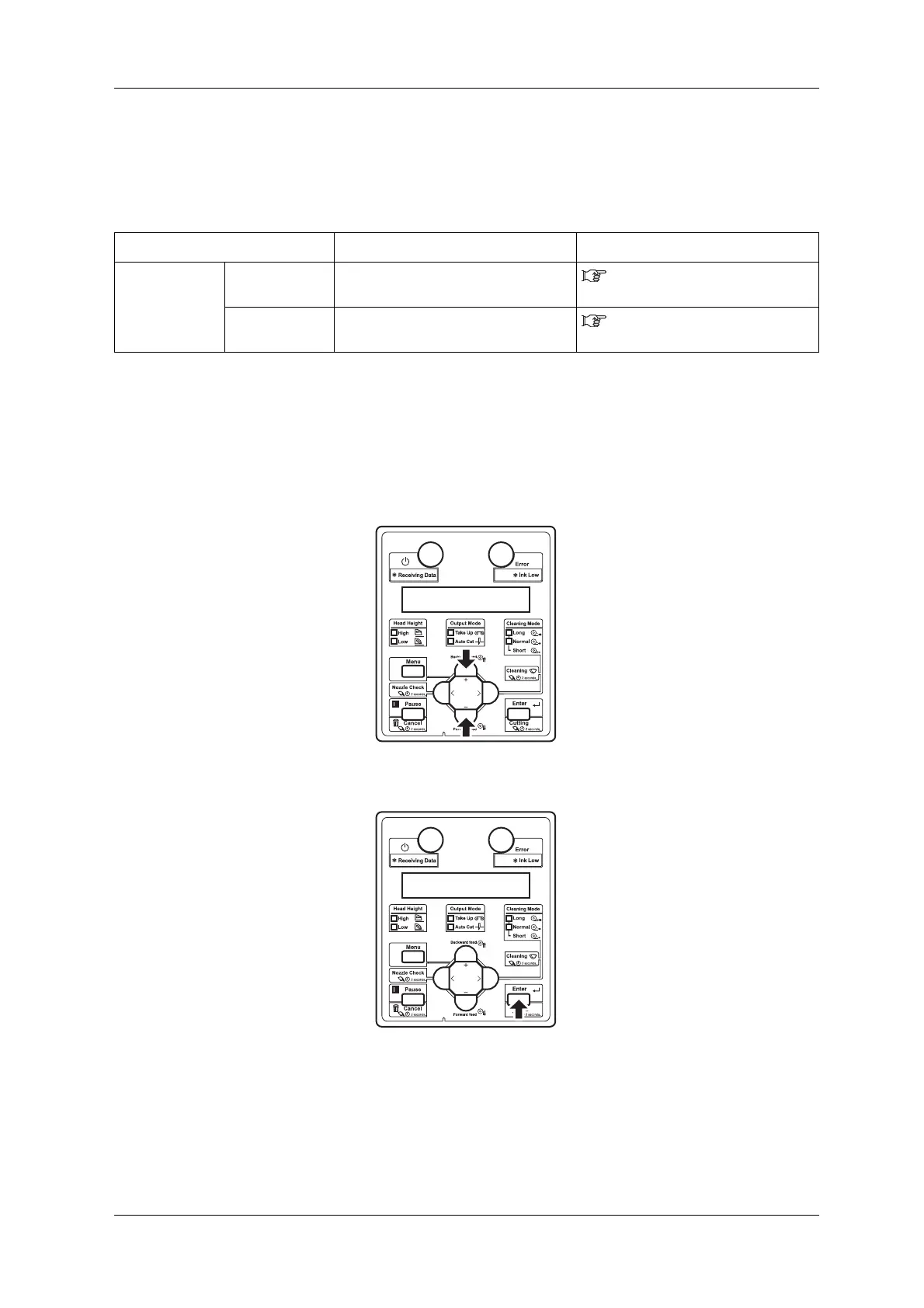

1. Display the Custom Adjust Print menu on Operation panel in the same way as Step 2 of
“
3.6.4.1 Custom Confirmation Pattern”.
2. Press the [+] key or [-] key on Operation panel to select “Adj.2: RoughPtn. ALL”.
3. Press the [Enter] key on Operation panel.
• “Warming Up Skip ->E” is displayed on Operation panel.
Menu name Description Reference
Custom rough
adjustment
pattern
Rough Pattern
ALL
All confirmation patterns (A to F) will be
adjusted.
3.6.4.2.1 Rough Pattern ALL
Rough Pattern A
to F
One of the confirmation patterns (A to F)
will be adjusted.
3.6.4.2.2 Rough Pattern A to F
