PrismJET 54 Gen2 OPERATION MANUAL Before using
3.6 Adjust Print 97
4. If the printer is not adjusted, go back to Step 2.
NOTE
• Perform micro adjustment if the printer is not fully adjusted after rough adjustment.
• In adjustment patterns, there are Adjust pattern ALL where all patterns will be adjusted and
Individual Adj. pattern where the patterns A to F can be adjusted individually.
3.6.4.3.1 Fine Pattern ALL
3.6.4.3.2 Fine Pattern A to F
3.6.4.1 Custom Confirmation Pattern
Using this menu, you can print out all of the confirmation patterns (A to F) and check the degree of
misalignment.
1. Turn ON the printer and load the roll media.
3.4.2 Setting Roll Media

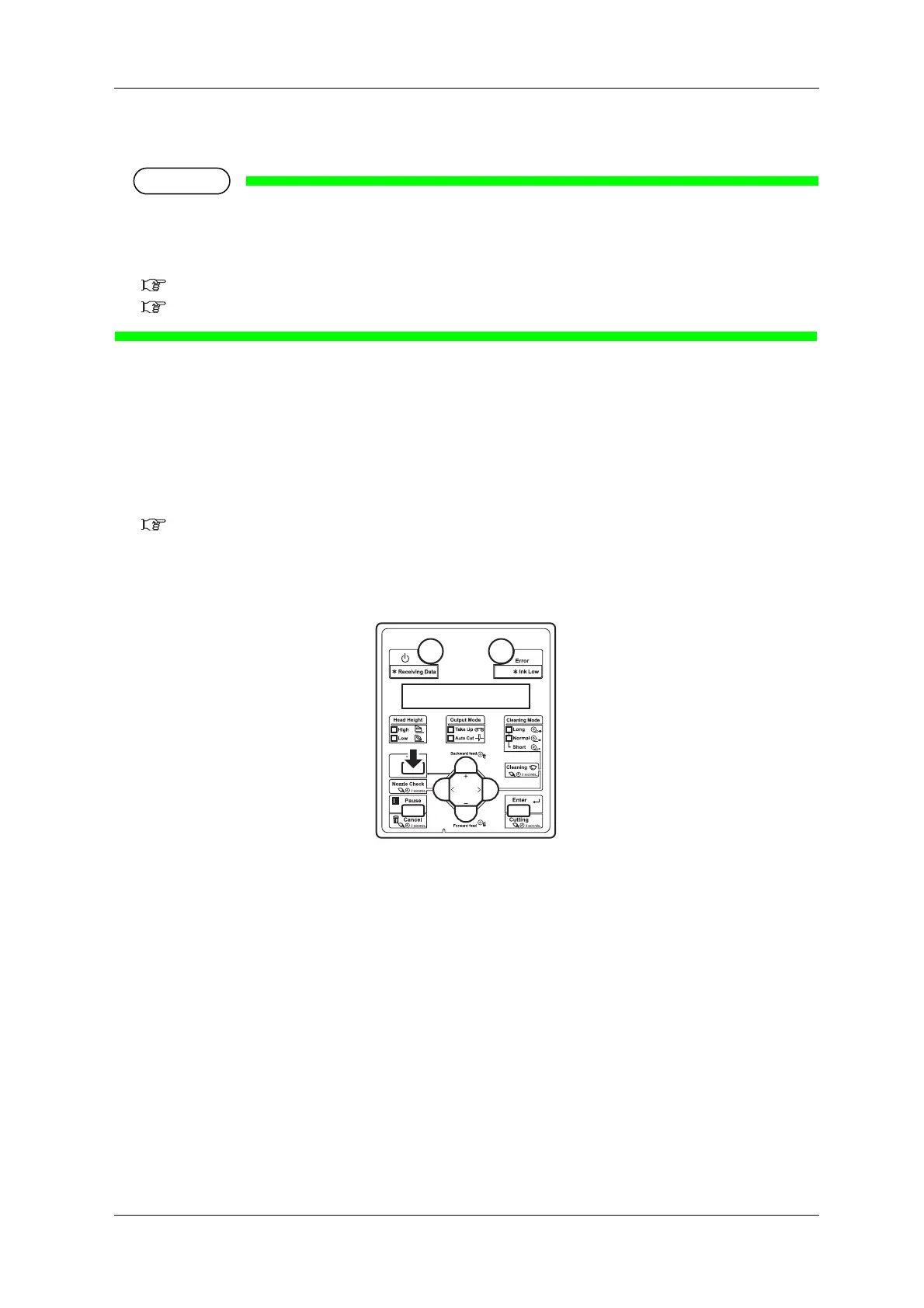

2. Display the Adjust Print menu on the operation panel.
a. Press the [Menu] key on the operation panel.
• “Menu1: Setup>” is displayed on the operation panel.
