118
Trinity F90+ user manual
- The panel is placed on the ground, far from any obstructions
- The panel lls about half the picture
- Camera is pointed as perpendicular to the panel as possible
- No shadows on the panel
- Direct sunlight illumination on the panel (no reected lighting)
10. In order to take the picture, please select one of the following options
a) Instant Trigger
b) Delay Trigger (15s) – Recommended if the calibration is made by only one person

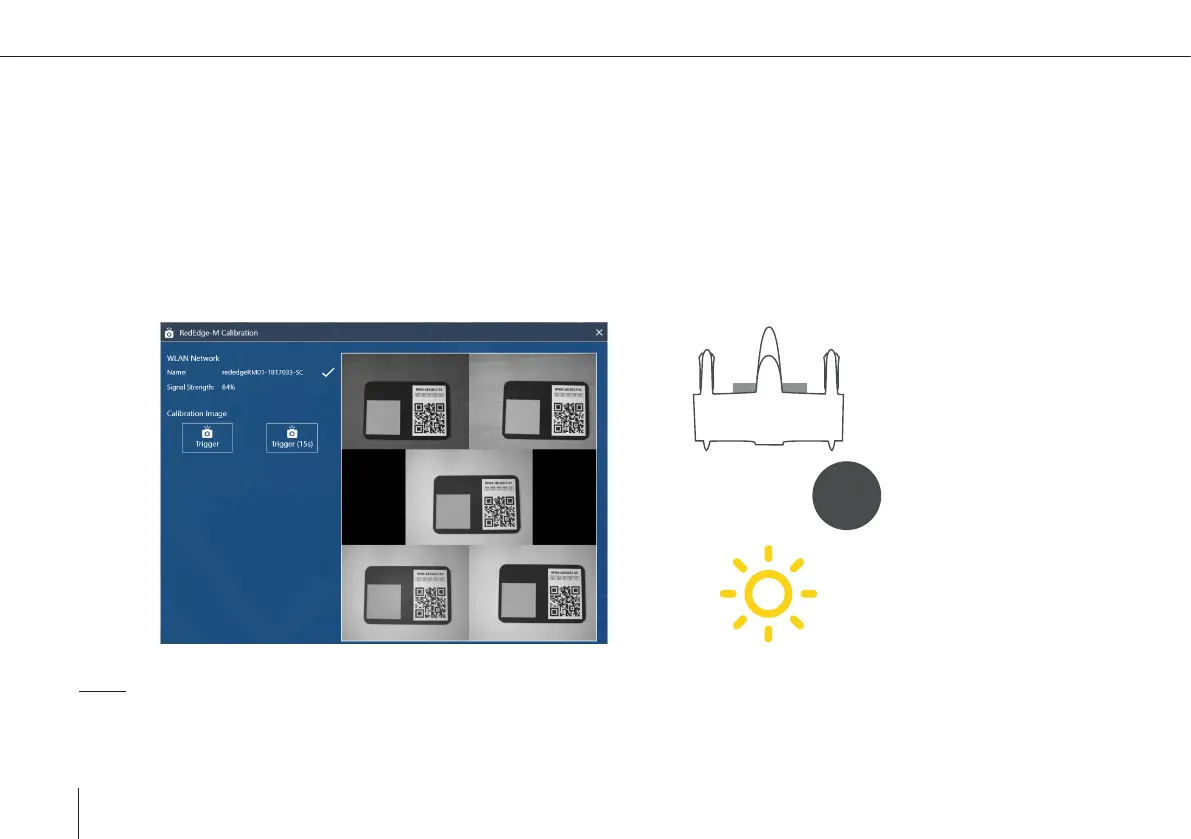

11. The picture is shown in QBase. Please make sure the panel itself as well as the QR code are in the picture.
Example:
Pilot
Panel
Sun
Note: Please take at least two calibration pictures. Please do not take the calibration picture by selecting the Trigger Payload
button.
12. Turn off the UAV again by removing the battery from the UAV.
13. Please continue with chapter 8.9 step – Assemble the UAV.
