Trinity F90+ user manual
System settings
Calibrate the touch display.
Set the time.
Speech volume
Set the speech volume.

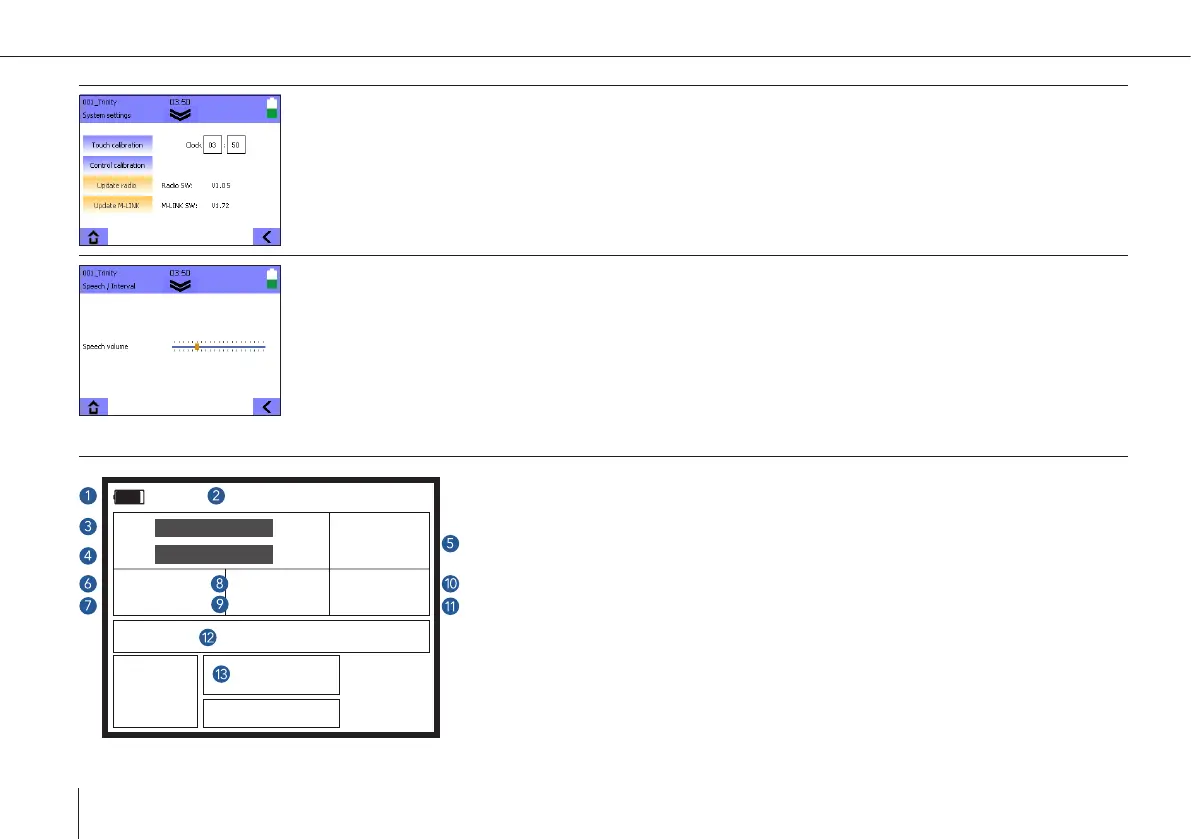

6.6.5 RC transmitter display during the ight
EMERGENCY
MISSION
T.BAT
MIS:
BAT:
ALT: 120 m
DST: 676 m
HDG: 224 °
WP: 4/16
AS: 17.0 m/s
Pics: 112
GS: 17.0 m/s
SATs: 15
49%
90%
06:04
24.8 V
92%
COMING
HOME
1. Battery state of your RC Transmitter
2. Number of satellites
3. Remaining mission time
4. Battery state of the UAV
5. Number of the taken pictures
6. Current altitude above take-off
7. Distance to the Home Waypoint
8. Heading (direction of the nose of the UAV)
9. Waypoints (current / overall). If switched to manual ight: (current/
heading e.g. 250 ° of the home waypoint) (see chapter 9.2 step 13.1)
10. Current airspeed
11. Current ground speed
12. Messages
13. Current state of the UAV
