70
Trinity F90+ user manual

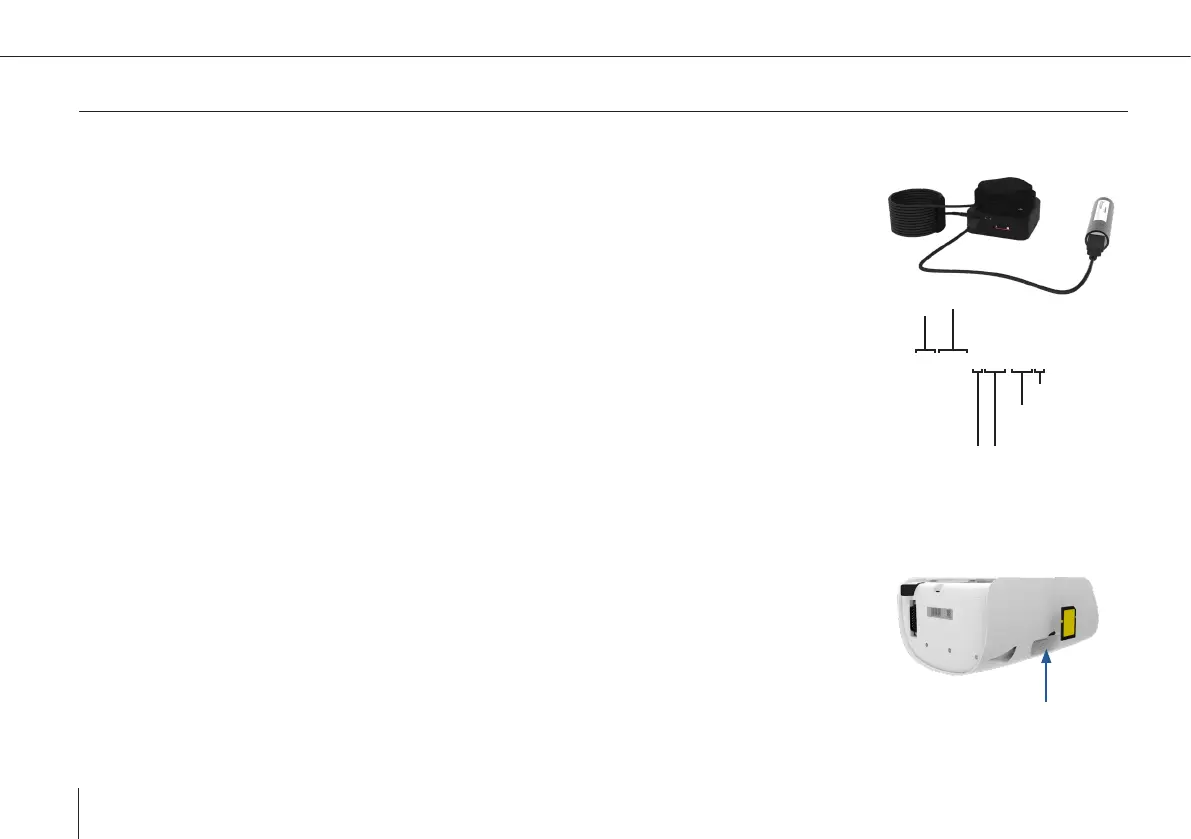

7.4.3 Geotag (PPK)
QS341B00.21R
Quantum-
Systems
Day 341
01. Jan. = 001
B = 01:00
(UTC Time, UK)
A = 00:00
X = 23:00
Counter of logs
within the hour
Year 2021
File format
The aim of PPK post processing is to geotag the pictures with very precise geodata.
Required les and data:
- FlyLog that is recorded during the ight and saved on the UAV
- iBase Log
- Pictures that are saved on the camera SD card
iBase:
1. Insert the Micro SD card of the iBase into your computer.
2. Copy the iBase Log le corresponding to your ight on your computer
(the latest le on the SD card e.g. QS341B00.21R)
UAV FlyLog:
3. For downloading the FlyLog from the UAV follow the instructions described
in chapter 7.4.2.
Pictures:
4. Remove the SD card from the payload compartment.
5. Insert the SD card into your computer, laptop or tablet.
6. Save the pictures on your computer, laptop or tablet.
Post processing in QBase:
7. Remove the pictures that were manually taken on the ground during the camera
check as well as during the automatic camera start-up (2 pictures).
8. Open Tools and select Post-Processing.
