7.2.2 Header

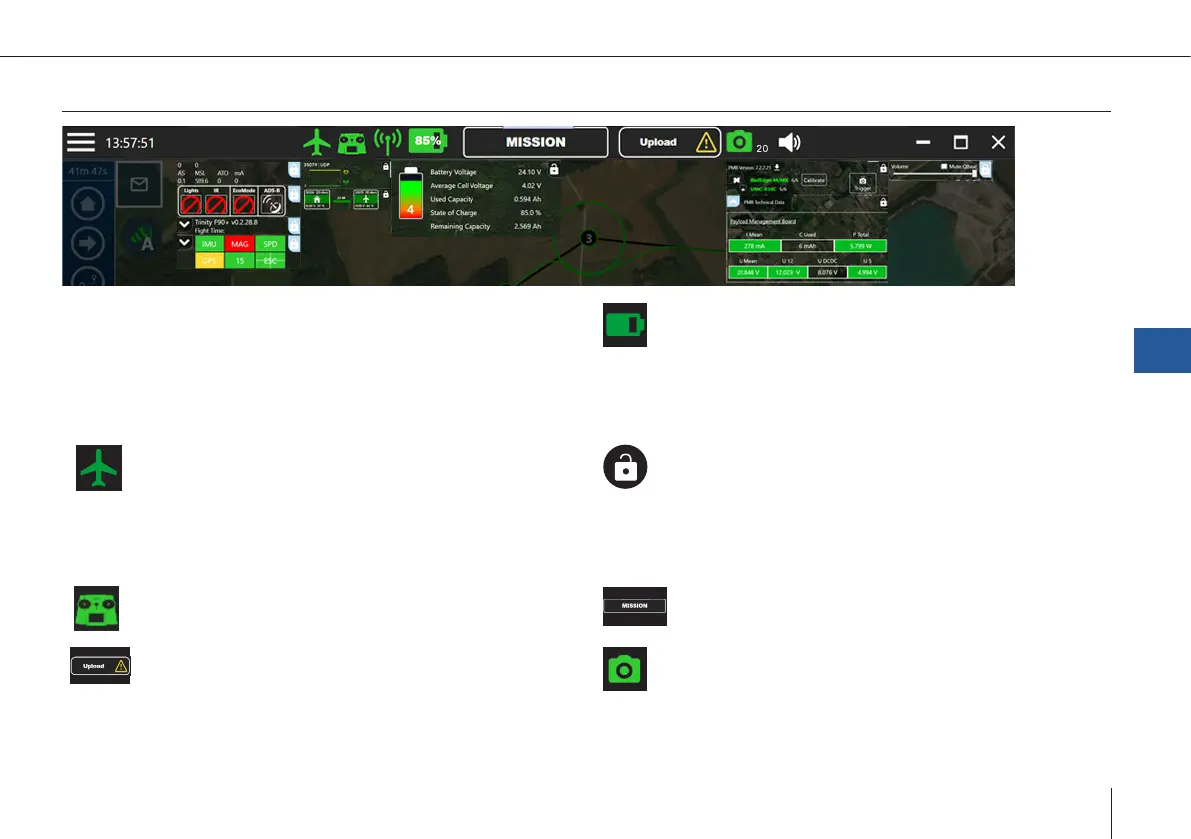

Header Icon colorcodes:
Unknown Status
Operational
Warning
Error (Either ight or mission critical)
Battery Status
1. UAV battery status
2. State of charge in %
3. Cell voltage
4. Used capacity
5. Number of batteries
UAV Status
1. UAV type
2. Autopilot version
3. Flight time
4. Serialnumber
5. Sensor status information
Display widgets permanently by activating the lock
symbol
GCS Controller Status Mode Display
Current autopilot mode
Upload Status
1. Write flight plan: Upload your mission to the UAV
2. If a different mission is stored on the UAV, the up-
load mission box appears with a Warning or an
Error.
Camera status + Amount of pictures
Widget open:
1. Name of camera
2. Amount of pictures/Amount of trigger attempts
