Trinity F90+ user manual

Congure the blue Camera (RedEdgeBX-SN)

9. Please connect the blue camera (RedEdgeBX-SN) via Wi according to steps 1. – 4. in order to congure it.

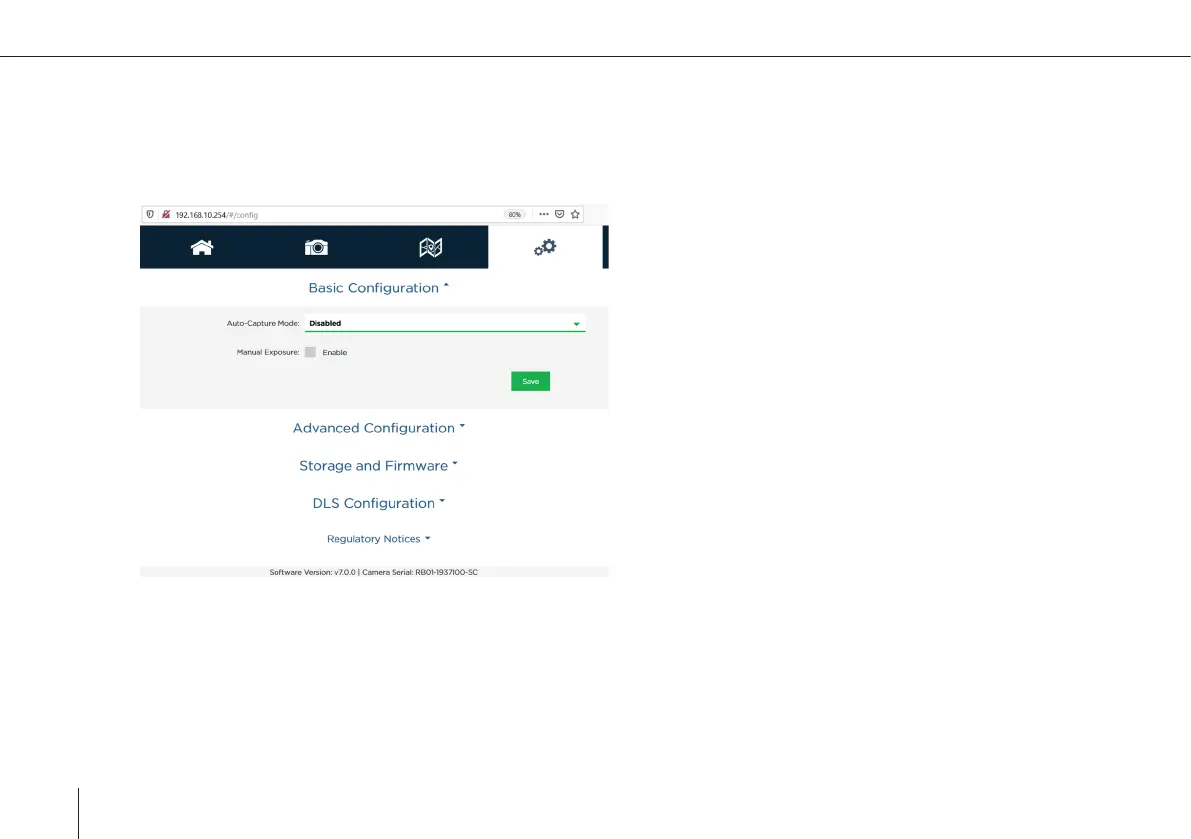

Basic conguration section

10. Click Save button on the bottom of this section to save the basic conguration.
