Mission elements
Deactivate element Delete element
Show/Hide Payload Triggers
(This will not deactivate the trigger-
points)
Move element up/Move element down
(in order to change the order of the
elements)
Pan to Element

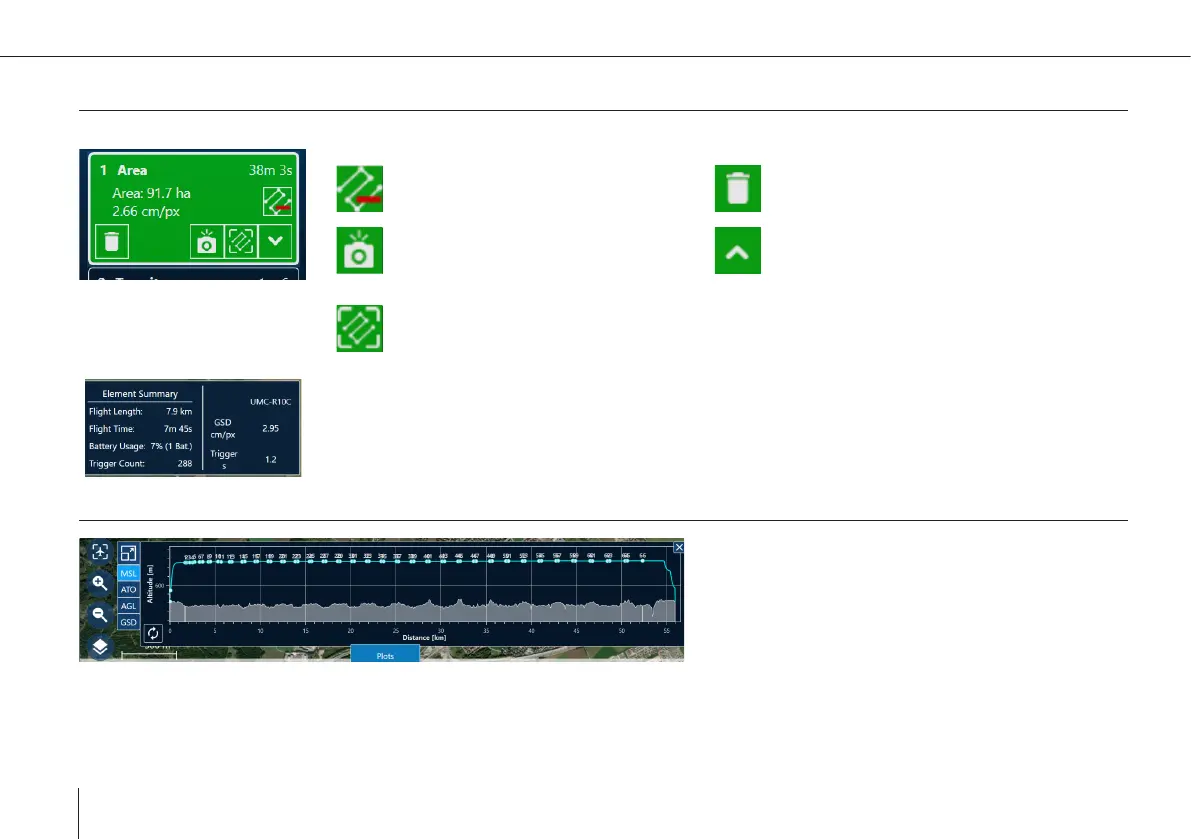

Element Summary: All Settings are displayed in the right corner.
If the selected camera cannot manage the required trigger speed, the trigger speed is displayed
in red color. In this case, try to switch the side and forward overlap settings in the Mission Settings.
Other options are selecting a higher ight altitude or changing the direction of the legs (cross
wind).
Plots
Plot colorcodes:
During Mission: During Take-off and Landing:
Warning <50 m
Error <20 m
Warning <19 m
Error <10 m
MSL: Altitude above sea level of UAV
ATO: Altitude above take-off
AGL: Altitude above ground of UAV
GSD: Ground sample distance
