Trinity F90+ user manual
1. Remove the payload transport lock.
2. If not already attached, attach the payload compartment. Ensure that the SD card
for the camera is inserted in the payload compartment. The payload compartment
must be attached for the ight operation.
3. Attach the rear fuselage to the main body.
4. & 5. Attach the wings.
6. Attach the elevator.
7. Take off the battery caps.
8. Connect the battery. The UAV will power up automatically.

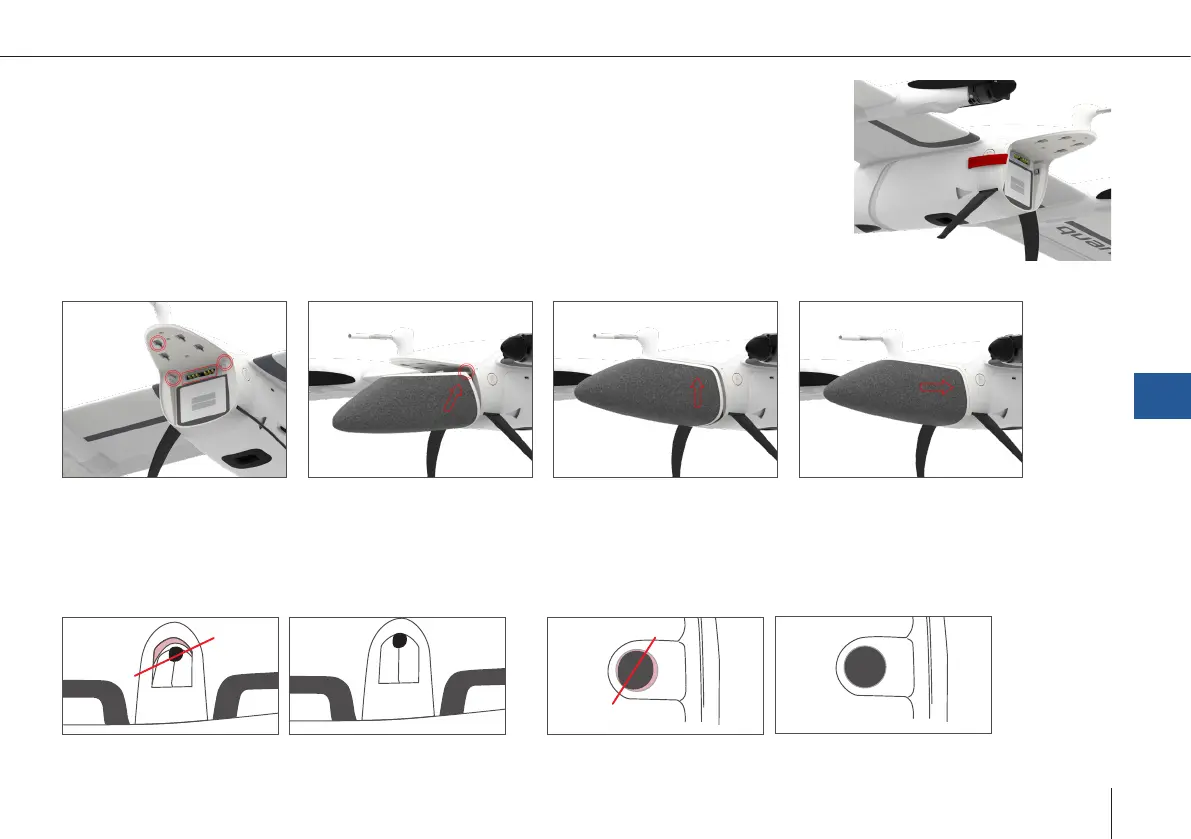

Nose lock mechanism
Align the battery according to the
picture.
Connect the four mounting hooks
on the top of the battery to the
main body.
Slide the battery backwards. Make
sure the locking mechanism is in
place.
All parts are connected by a lock mechanism. No tools are required for the setup. Check all connections and ensure that the lock
mechanism is in place.
Elevator
Elevator
Wing / Rear Fuselage / Nose
Wing / Rear Fuselage / Nose
WRONG WRONGCORRECT CORRECT
8
Flight setup – step by step
