QubicaAMF XLi EDGE Series User Manual

XLi EDGE Pinspotter
Section 4-3 Page 4.3-4 Rev. Date: 10/2016
4.3.3 Table Drive Assembly - Continued
Every 25,000 frames:
1. Spotting hook pivot bushings: 1 drop of oil (2 places).
2. Upper spotting link assembly bushings: 1 drop of oil (2 places).
3. Solenoid linkages: 1 drop of oil (6 places).
4. Ball joint assemblies: 1 drop of oil (2 places).
Every 25,000 frames:
5. Grease the spot and respot cam follower bearing.
6. Oil the spot and respot levers.
2
1
3
1
4

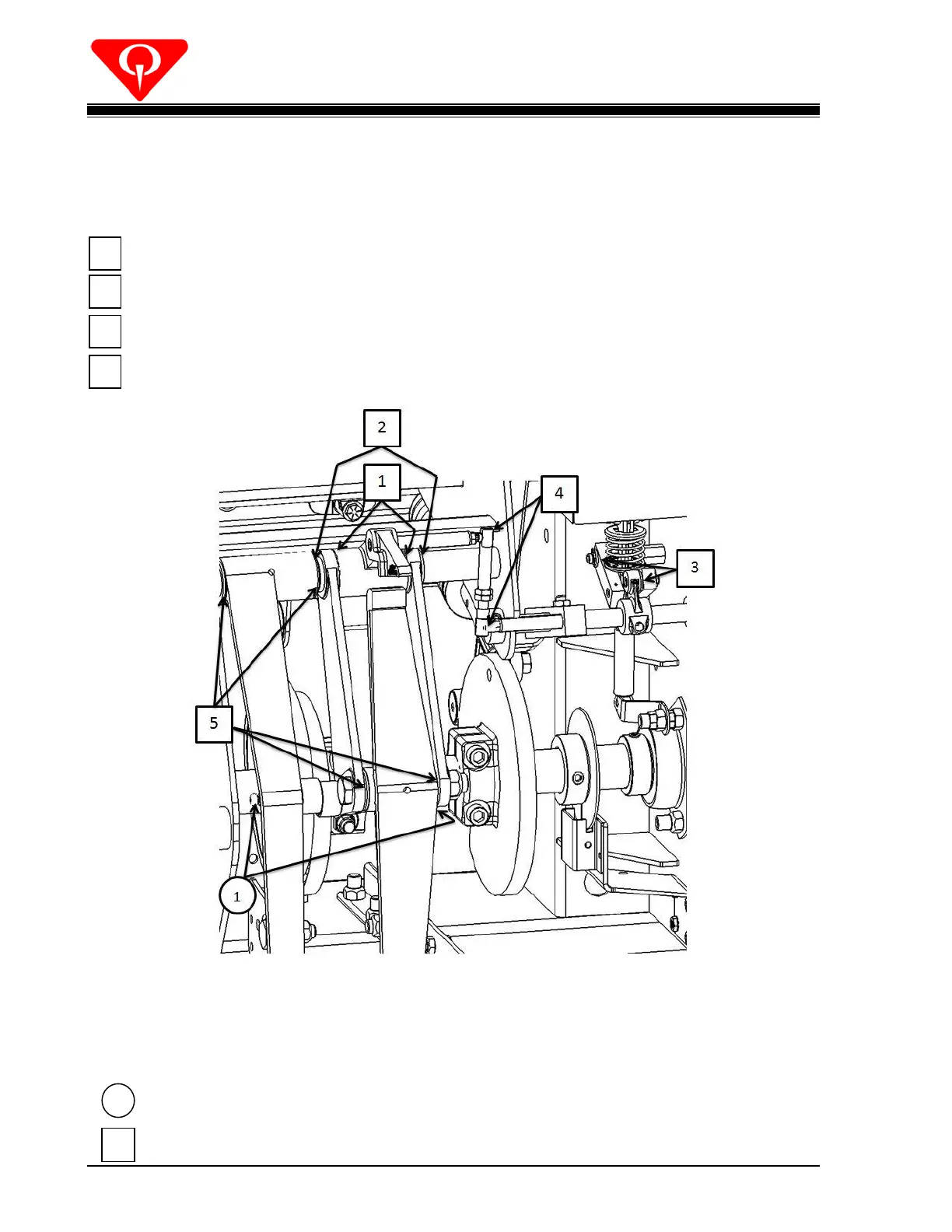

Figure 4.3-3b
1
4
2
5
