XLi EDGE Pinspotter
Section 4-1 Page 4.1-6 Rev. Date: 10/2016

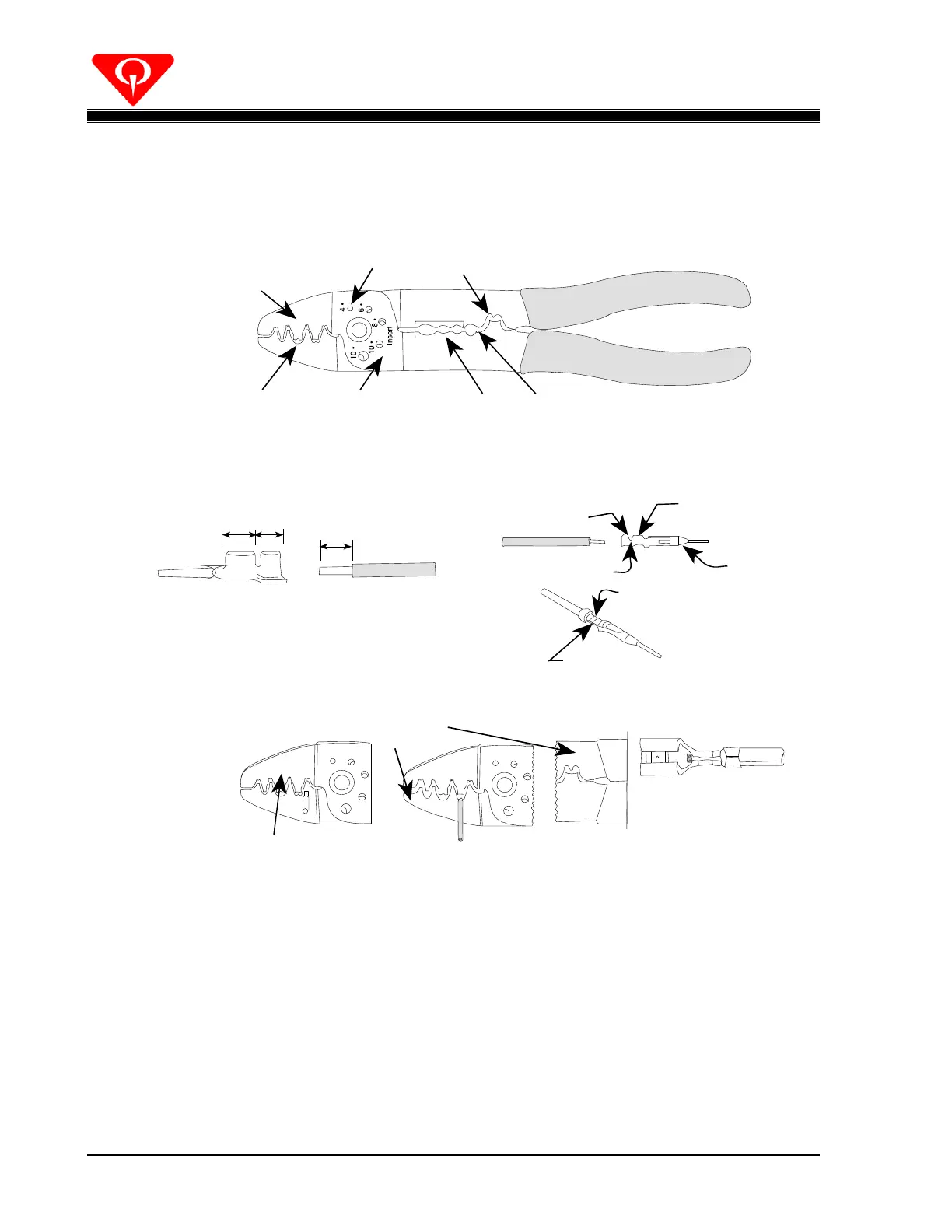

4.1.4 Crimping Tool (Typical)
Figure 4.1-3
Wire Barrel - Position the contact in the
appropriate crimp area (A, B, C, or D) with
the wire barrel opening facing the letter.
Squeeze the tool handles just enough for
the jaws to hold the contact in place. Insert
a properly stripped wire into the wire
barrel. Hold the wire in place and squeeze
the tool handles to finish the crimp.
Insulation Barrel - Position the contact and
wire in the appropriate insulation crimp
area (E, F, G, or H) with the insulation
barrel opening facing the letter. Hold the
contact and wire in place and squeeze the
tool handles to finish the crimp.
WIRE
A
B
C
D
INSL
E
F
Open
Barrel
Crimping
(“F”Crimp)
Wire
Barrel
Crimper
Insulated
Barrel Crimper
H
IN USA
Crimped
Contact (Typ)
Wire Stripping
“B” equals Barrel Length
“C” equals Insulation Grip
Stripping Length equals Barrel Length plus 1/32 inch.
B
C
B +
Insulation
Barrel
Wire
Barrel
Pin
Slot
Finished
Crimp
Two
Hashmarks
AMF PART #792-009-010
Wire Barrel -- Position the contact in the
best crimp area ("A, B, C, or D") with the
wire barrel opening facing the letter as
shown. Squeeze the tool handles just
enough for the jaws to hold the contact in
place. Insert a properly stripped wire into
the wire barrel. Hold the wire in place and
squeeze the tool handles to finish crimp.
Insulation Barrel -- Position the contact
and wire in the best insulation crimp area
("E, F, G, or H") with the insulation barrel
opening facing the letter as shown. Hold
the contact in place and squeeze the tool
handles to finish crimp.
WI
INS
A
B C D
E F G
HARRISBURG, PA.
Open Barrel
Wire Crimp
Area
Front of
Tool
J
K L
M
H
IPD
Bolt
Cutting
Area
Open Barrel
Insulation
Crimp Area
Open Barrel
Insulation Crimp
Area
Closed
Barrel Wire
Crimp Area
Closed Barrel
Insulation
Crimp Area
CRIMPING TOOL
