Section 4.2
Machine Adjustments
400-088-120-02 4.2-29 Rev. Date: 10/2016

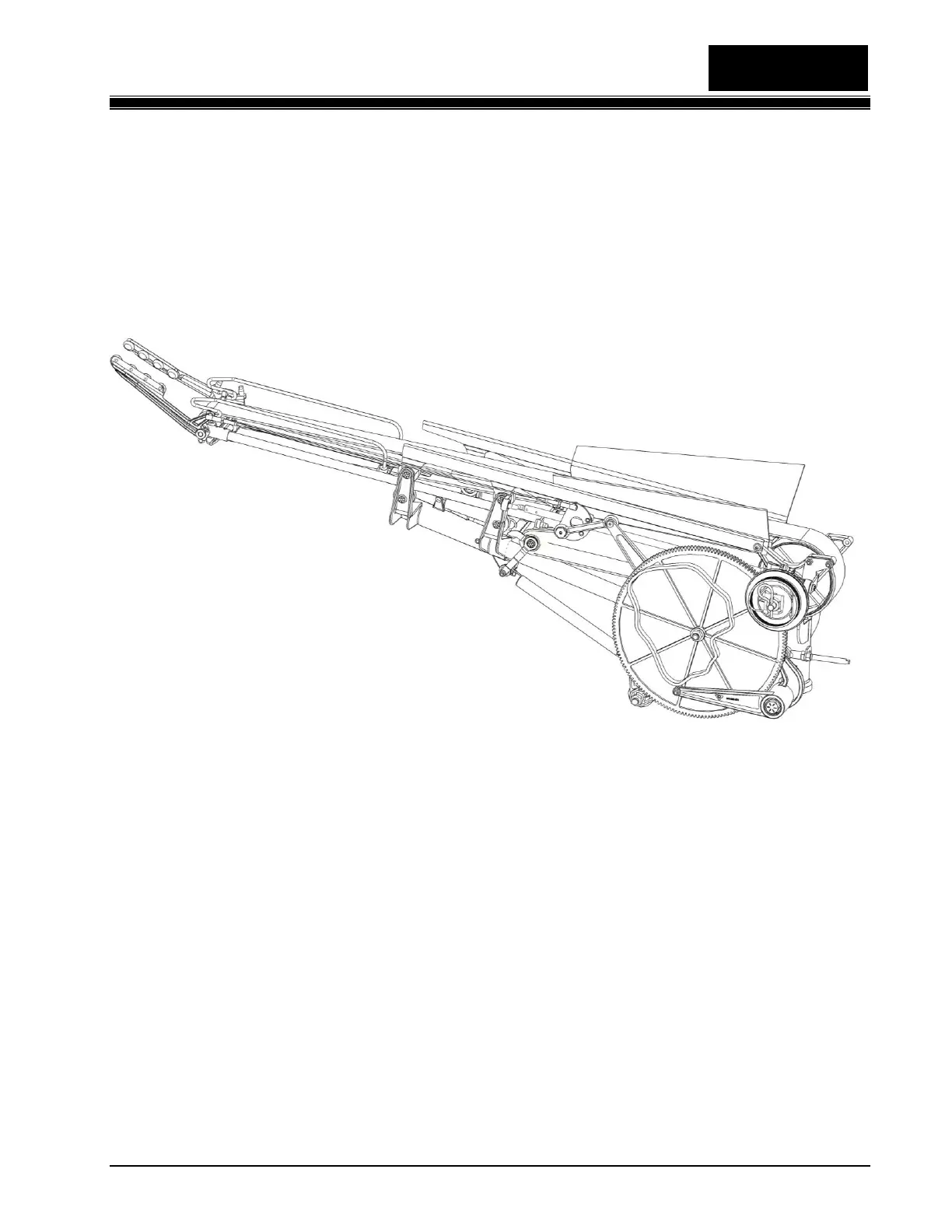

4.2.5 Distributor
The Distributor transfers pins from the Pin Elevator to the Bin. Through a number of cleverly designed
components, it extends and retracts while sweeping from side to side stopping and depositing pins in
each of the ten bin positions. For complete information concerning the Distributor, refer to the XLi
EDGE Pinspotter Pin Distributor Manual, 400-088-121.
