Section 4.2
Machine Adjustments
400-088-120-02 4.2-17 Rev. Date: 10/2016
4.2.2.17 Yoke Assembly (X-Frame) Removal
Note: If the yoke is broken, it can be repaired with Yoke Repair Kit #610-704-011. It is not
necessary to remove the yoke from the table in order to make the repair.
1. With the table at the home position, disconnect the spot and respot rods from the lower end
of the spot and respot levers.
2. Hold the cam lever down on the table drive eccentric and manually crank the table to the 180
degree position, which is the lowest position of the table.
3. Remove the pins from the spotting cups.
4. Disconnect the extension springs (one on each side) which attach yoke shaft #4 to the table
uprights. (See Figure 4.2-18.)

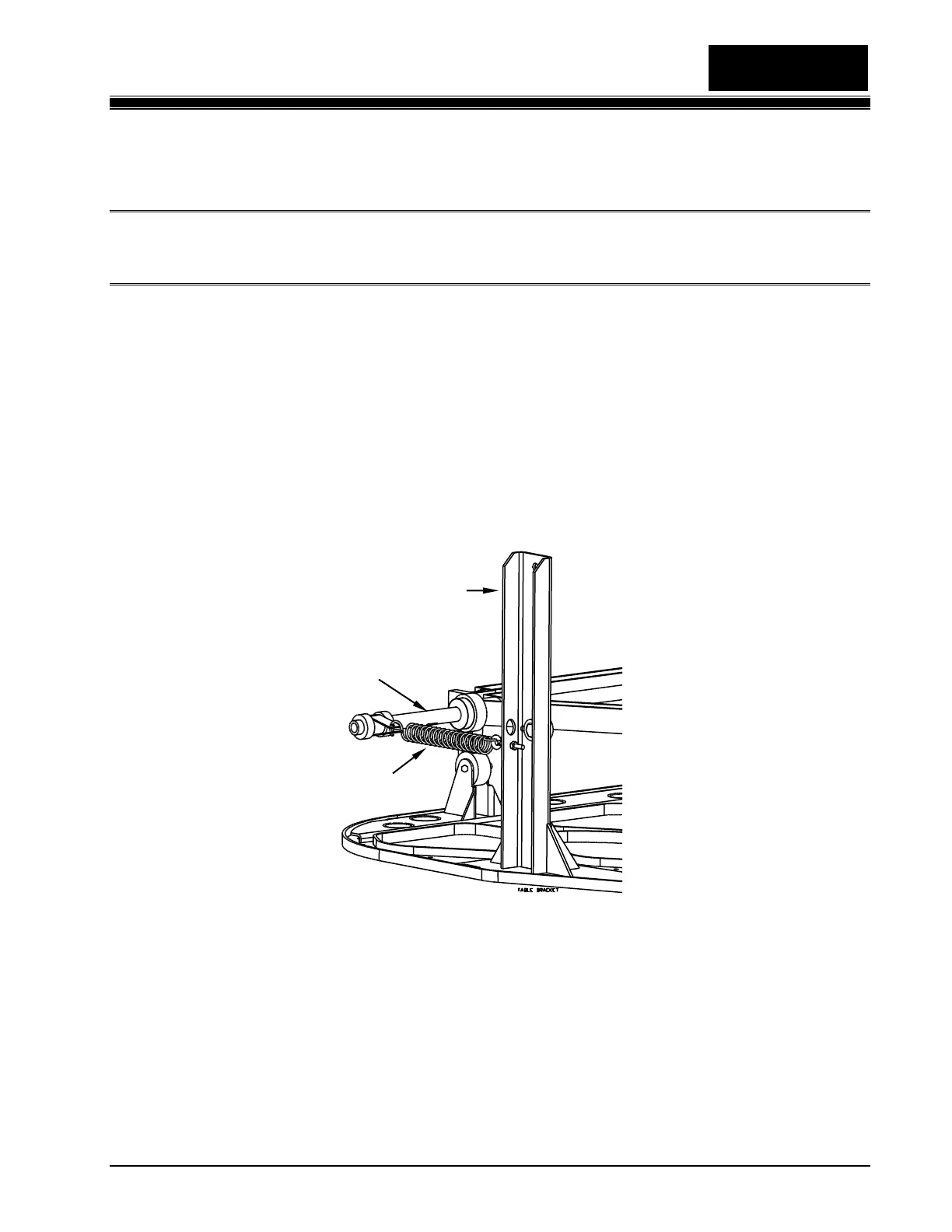

Figure 4.2-18
5. Remove the bolts that attach the front and rear X-frame legs to the front and rear table
brackets. The yoke can now be removed.
6. To reinstall the yoke assembly, reverse the actions of steps 1, 2, 4, & 5.
