QubicaAMF XLi EDGE Series User Manual

Lubrication
400-088-120-02 Page 4.3-9 Rev. Date: 10/2016
Section 4.3
4.3.5 Respot Cells
Every 25,000 frames:
1. Respot cell lever: 1 drop of oil on each lever (10 per machine).
2. Pivot points: 1 drop of oil on each pivot point (10 cells per machine).
3. Carburetor links: 1 drop of oil at each end (6 links per machine).
4. Pivot washers: 1 drop of oil on each washer (2 places per cell).

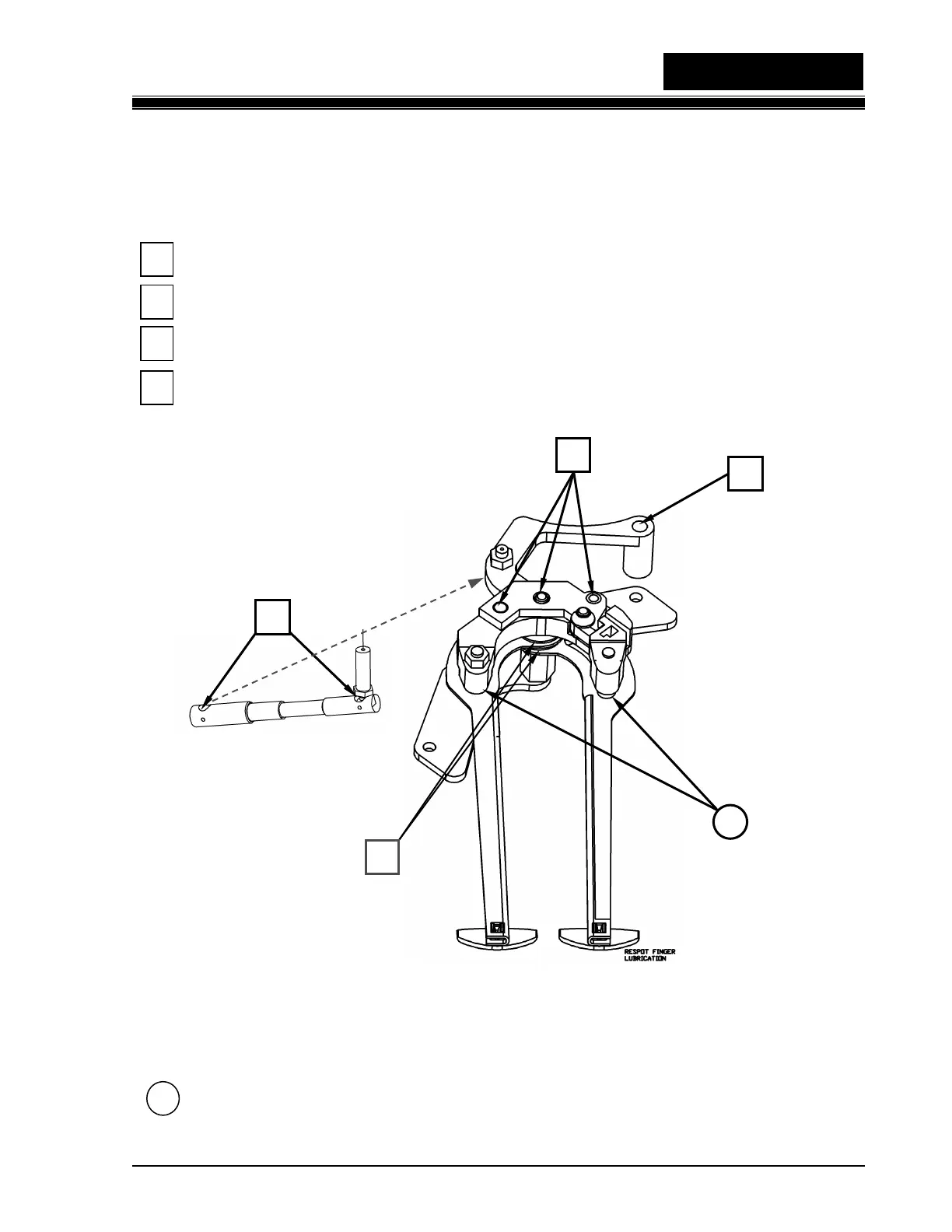

Figure 4.3-5
5. Respot cell finger slots: apply a light film of grease along the perimeter of each
slot (20 places) every 100,000 frames.
2
3
1
1
1
2
1
3
4
4
