Section 4.1.
Service Tools
400-088-120-02 Page 4.1-1 Rev. Date: 10/2016
4.1 Service Tools
4.1.1 Service Tool Kits
There are a couple of tool kits available for servicing the XLi EDGE Pinspotter: The
Deluxe Tool Kit, P/N 784-528-013, and an XLi Steel Table Tool Kit, P/N 784-528-014.
Figure 4.1-1a shows most of the tools that are included in the Deluxe Tool Kit, Figure
4.1-1b shows the tools that are included in the Steel Table Special Tool Kit, and Figure
4.1-1c shows the new motor crank. The complete lists of parts in the kits are also
included.

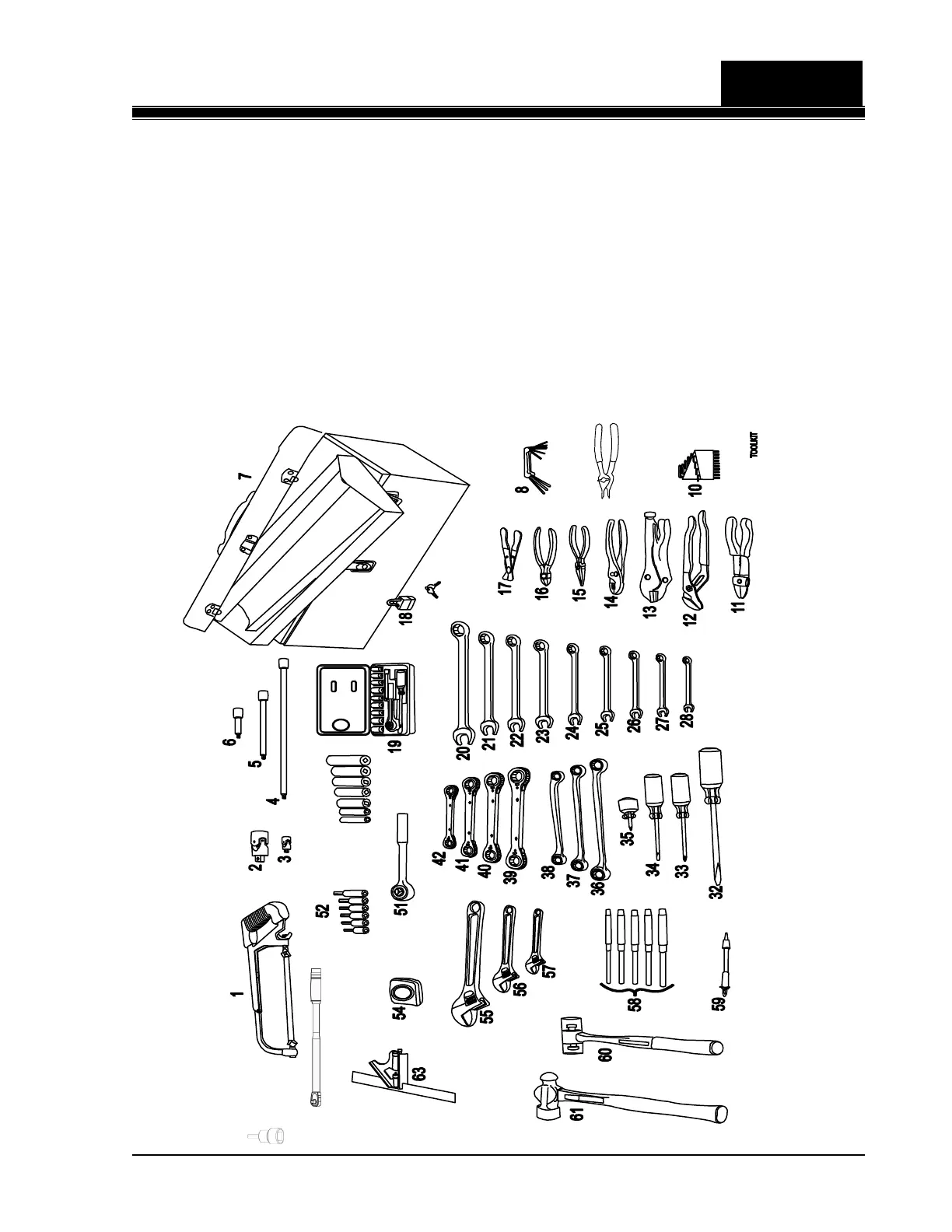

4.1.1a Deluxe Tool Kit
Figure 4.1
-1a, Deluxe Tool Kit
- P/N 784
-528
-013
4650
44
9
64
65
