QubicaAMF XLi EDGE Series User Manual

XLi EDGE Pinspotter
Section 4-3 Page 4.3-10 Rev. Date: 10/2016

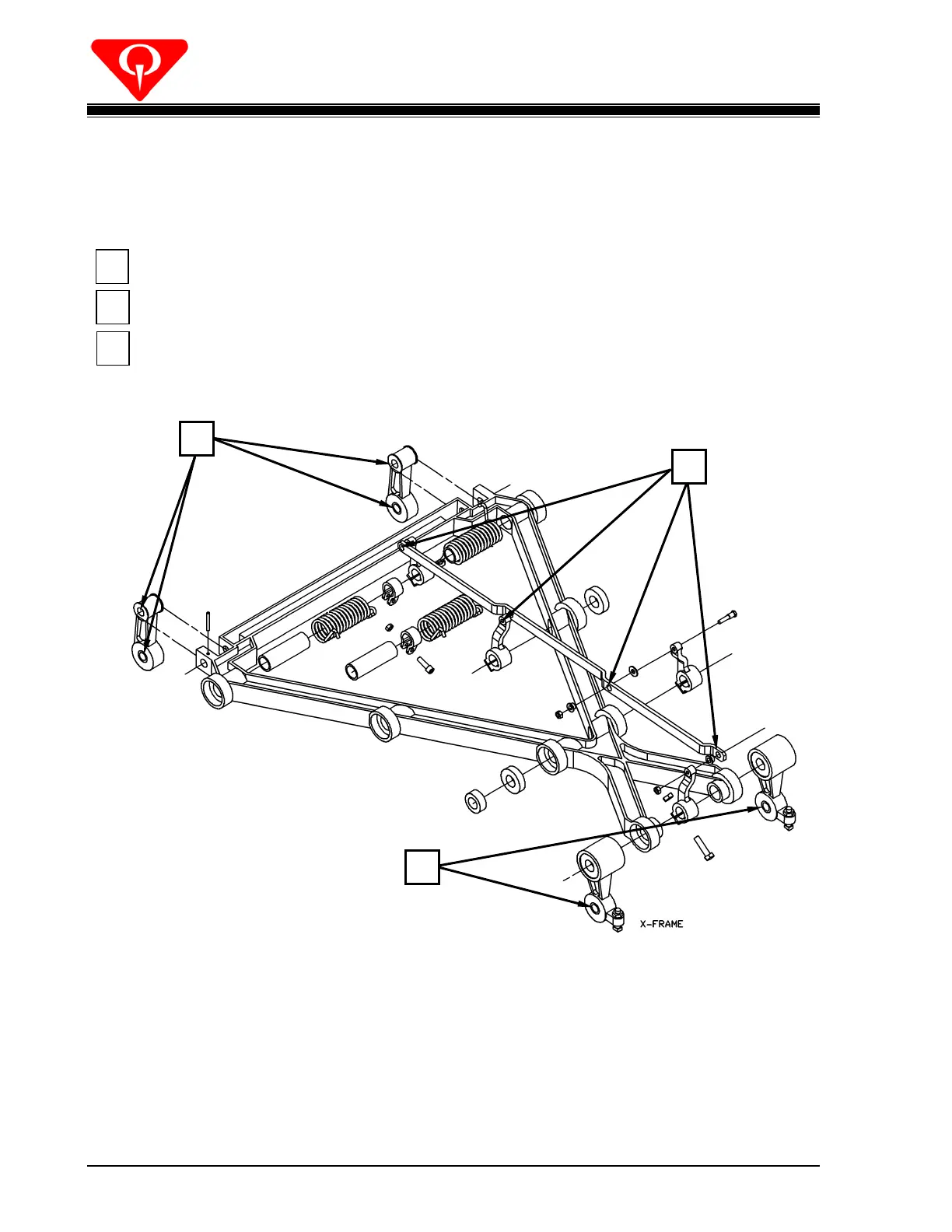

4.3.6 Yoke Assembly
Every 25,000 frames:
1. Rear leg bushings: 2 drops of oil on each side (8 places).
2. Linkage rod pivot points: 1 drop of oil (4 places).
3. Front leg lower bushings: 2 drops of oil each side (4 places).
2
3
1
1
2
3
Figure 4.3-6
