QubicaAMF XLi EDGE Series User Manual

Lubrication
400-088-120-02 Page 4.3-11 Rev. Date: 10/2016
Section 4.3
4.3.7 Table Shifter Mechanism
Every 25,000 frames:
1. Finger lever bushings: 1 drop of oil (2 places).
2. Finger link: 1 drop of oil (2 places).
3. Spot lever: 1 drop of oil (2 places).
Every 100,000 frames:
4. Shifter Link and cam link: repack needle bearings (2 places).
5. Cam Link: apply a light coat of grease to the underside (1 place).
6. Shifter Link: apply a light coat of grease (1 place).
7. Actuator Arm: apply a light coat of grease to the inside surface (1 place).
2
3
1
1
2
3
4
1
2
2
3

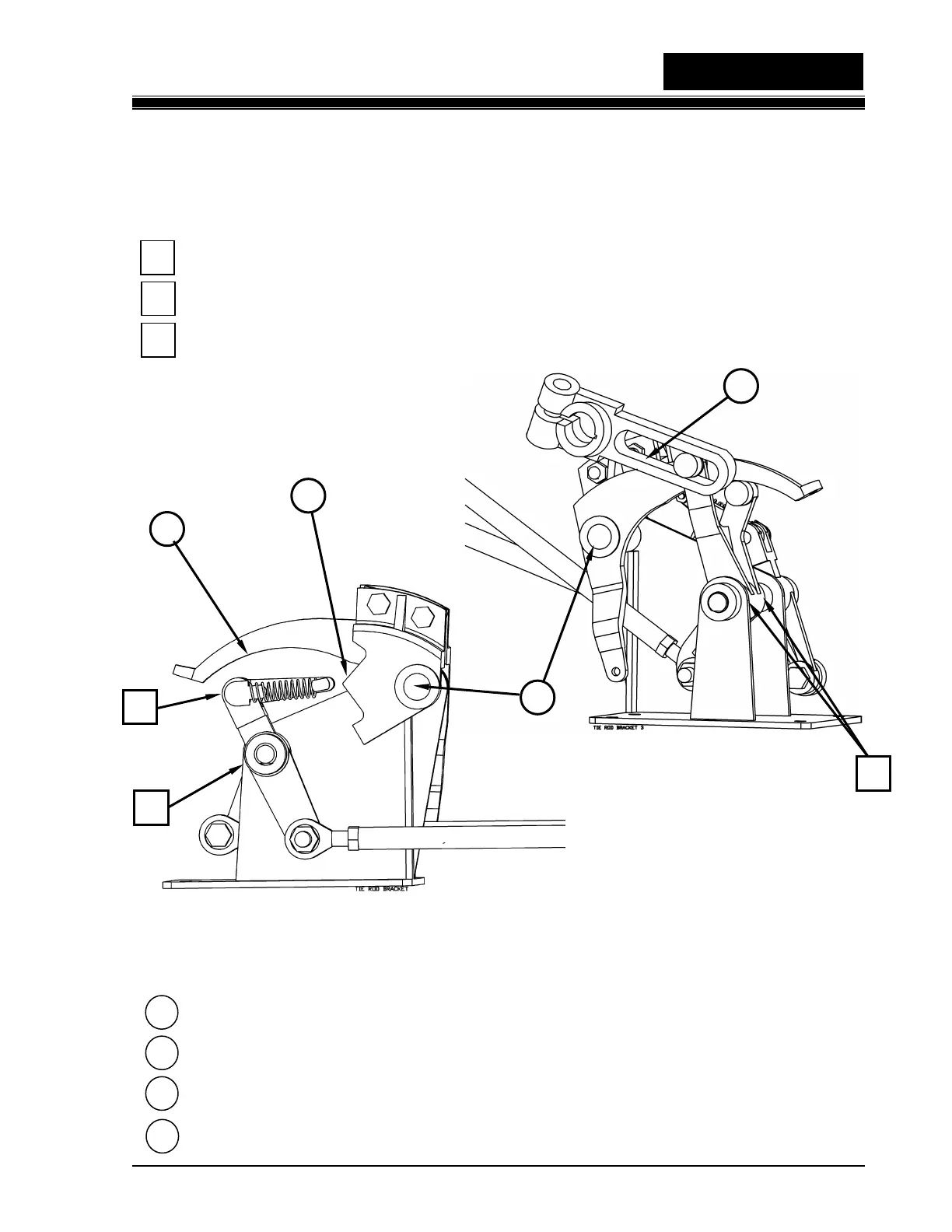

Figure 4.3-7a
3
4
Figure 4.3-7b
1
