QubicaAMF XLi EDGE Series - Page 113

XLi EDGE Pinspotter
Section 4-3 Page 4.3-12 Rev. Date: 10/2016
4.3.8 Table Actuator and Connector Assemblies

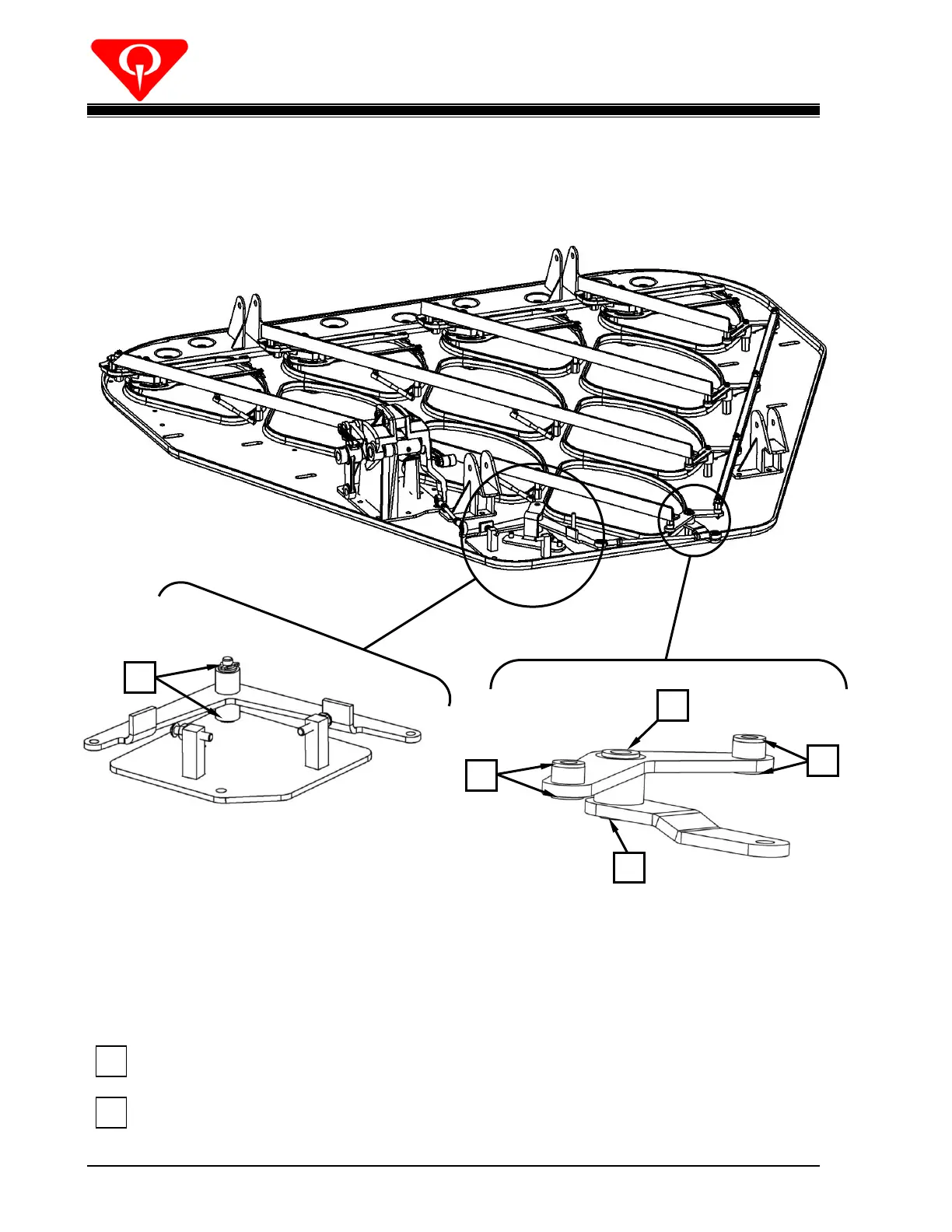

Figure 4.3-8
Every 25,000 frames:
1. Front actuator assembly bushings: 1 drop of oil (2 places).
2. Front connecting link assembly bushings: 1 drop of oil (6 places).
1
2
1
2
2
2
2
