QubicaAMF XLi EDGE Series User Manual

QubicaAMF XLi EDGE Pinspotter
Section 4-6 Page 4.6-2 Rev. Date: 10/2016
4.6.2 Table Troubleshooting
4.6.2.1 PROBLEM: Respot cells will not pick up or place pins.

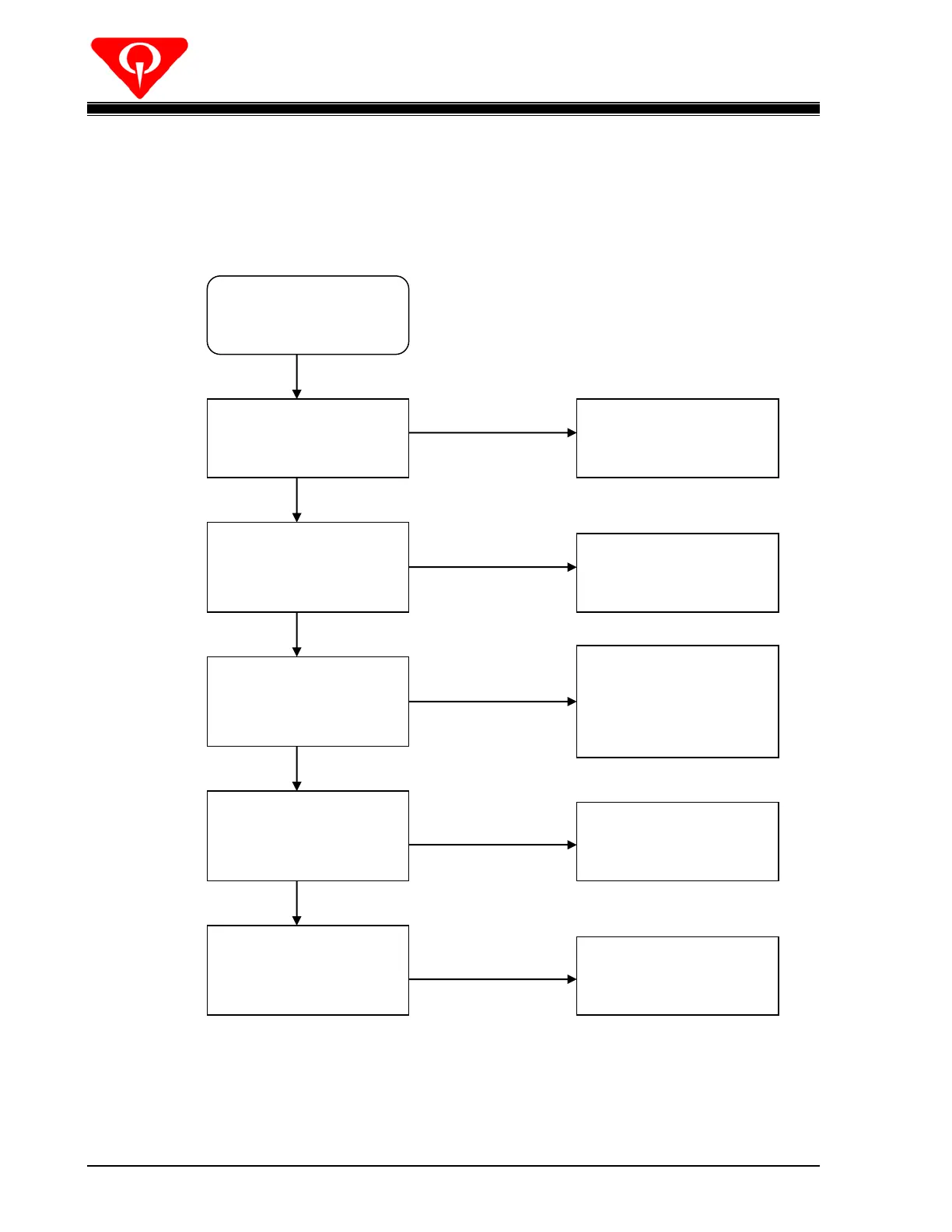

Figure 4.6-1
Respot cell
binding or
broken?
YES
Check all cells and
repair bad unit.
Cell linkage
binding or
broken?
YES
Repair or replace
linkage.
NO
Only one respot
cell out of
adjustment?
Adjust cell –
check condition of
fingers and cell
adjusting screw.
YES
NO
START
Respot rod out of
adjustment?
Adjust rod.
YES
NO
More than one
respot cell out of
adjustment?
Adjust rod.
YES
NO
