XLi EDGE Pinspotter
Section 4-2 4.2-8 Rev. Date: 10/2016
4. Use the hand crank to lower the Table to the point where the bottom of the pins (if not all,
then most) first touch the pin deck.
5. Loosen the jam nuts on the Spot Rod.

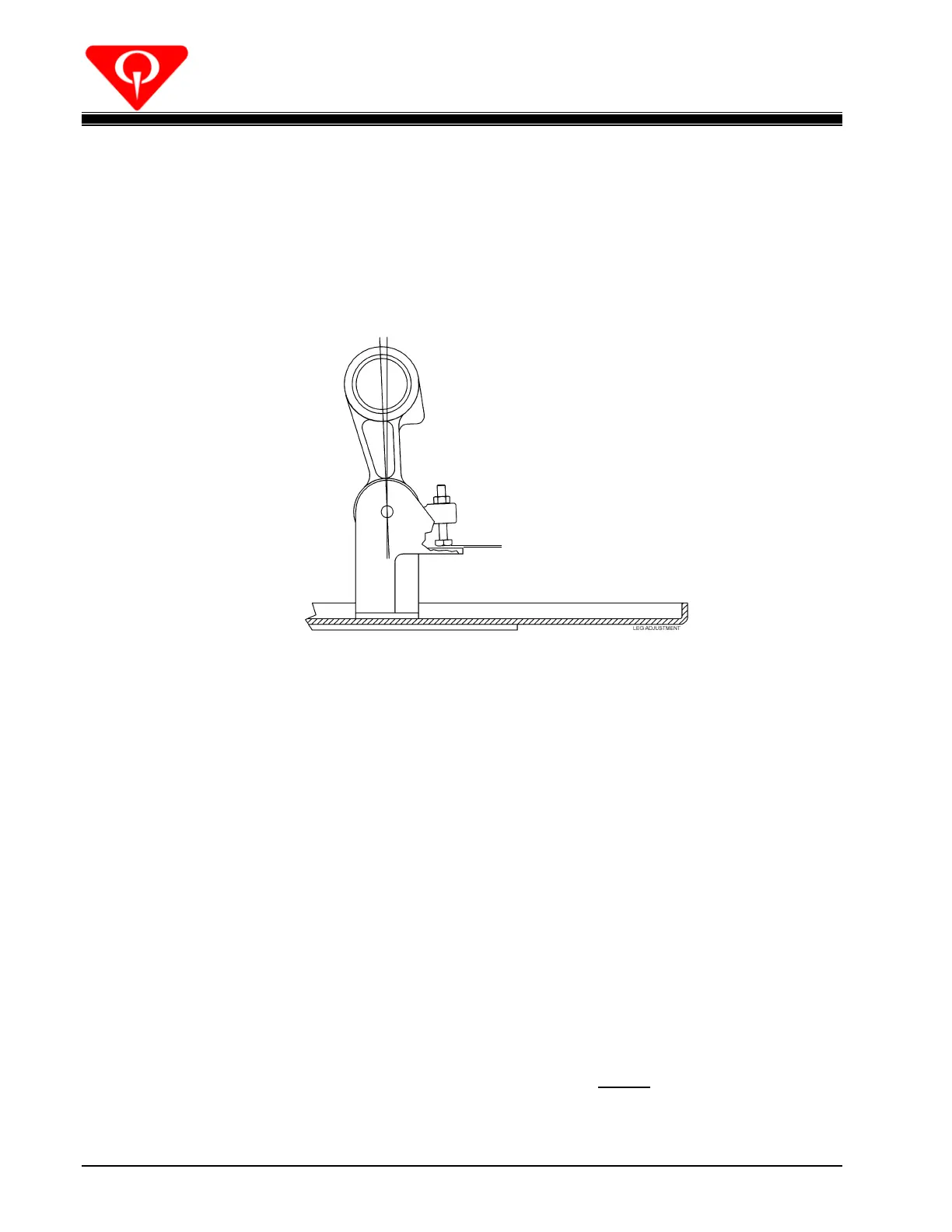

6. Adjust the Spot Rod so that the head of the Table Leg Screw just begins to lift off of the Table Leg
Bracket. There should be a 1/16 to 3/32-inch gap (see Figure 4.2-10).
Figure 4.2-10
7. Gently push up and down on the front of the Table to be sure this adjustment is true.
8. Once it is within adjustment, tighten the Spot Rod jam nuts.
9. Continue with the next adjustment.
4.2.2.6 Individual Pin Height Adjustment
1. Lower the Table to where most of the pins just touch the pin deck.
2. Look under the Table and notice which pins are touching the pin deck and which are not. Make
a note of which pins are sitting too low and which are sitting too high. All 10 pins must touch the
pin deck simultaneously to obtain a proper spotting action.
3. Plug in the Table Motor and run the Table to the low point in a Respot cycle.
4. Unplug the Table Motor.
To Next Page
