QubicaAMF XLi EDGE Series User Manual

Lubrication
400-088-120-02 Page 4.3-7 Rev. Date: 10/2016
Section 4.3

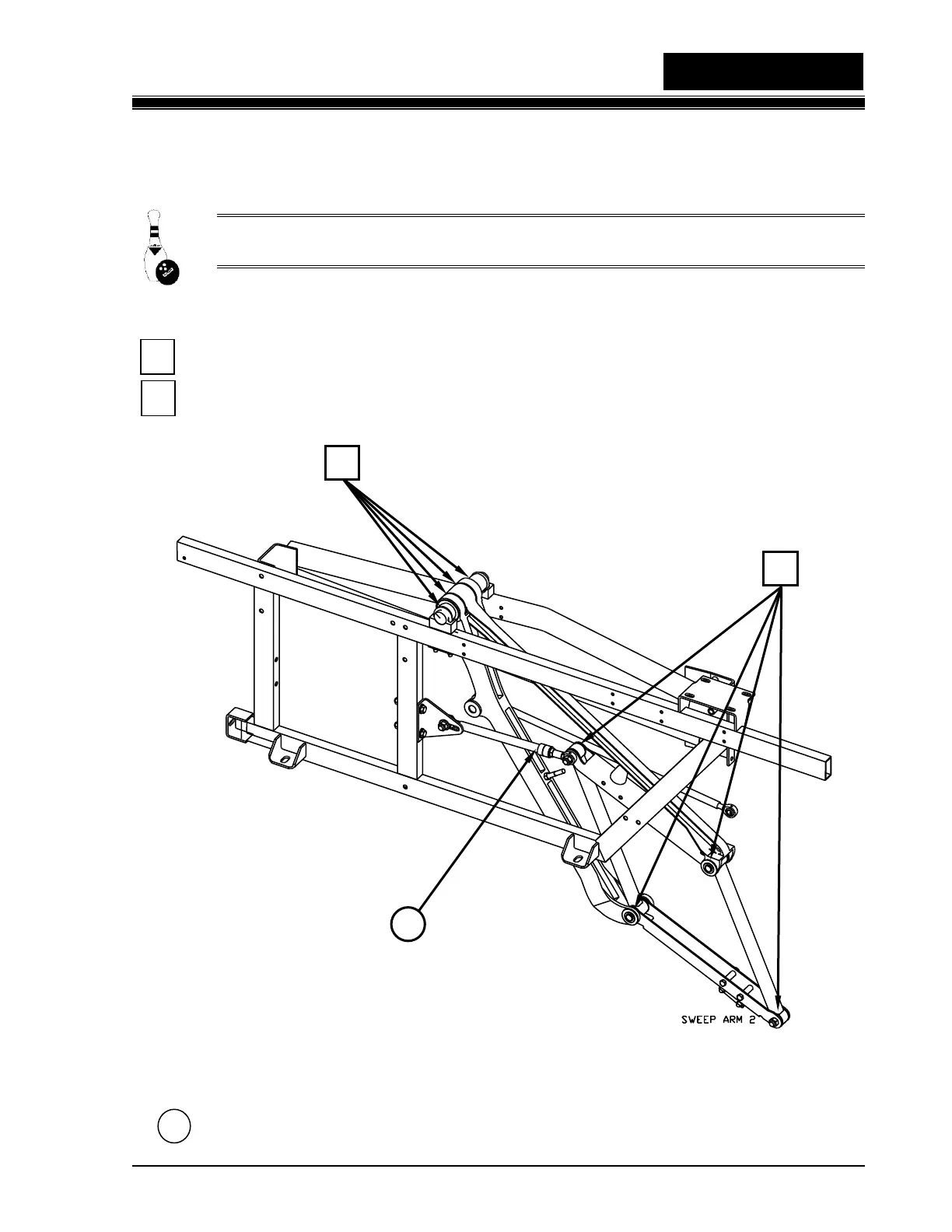

4.3.4 Sweep Drive and Linkages
NOTE: Only one side of the sweep linkage is shown. Totals reflect both sides.
Every 25,000 frames:
1. Linkage knuckles: 4 drops of oil on each knuckle (8 places).
2. Linkage joints: 2 drops of oil on each joint (8 places).
3. Inside guide tube: clean and grease every 100,000 frames.
2
1
1
Figure 4.3-4a
1
2
1
