QubicaAMF XLi EDGE Pinspotter

Section 4-6 Page 4.6-26 Rev. Date: 10/2016

4.6.4.5 PROBLEM: Back end motor trips on overload.

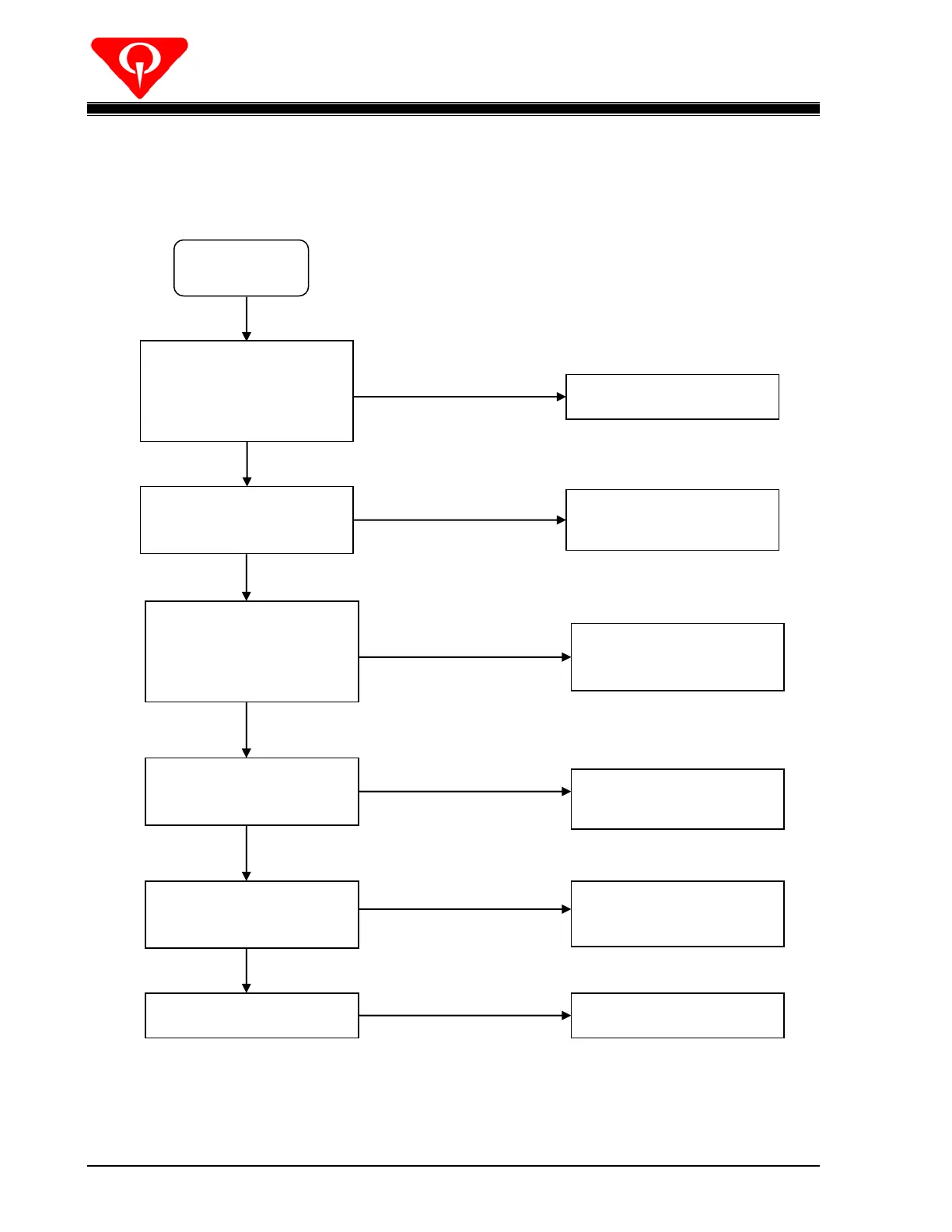

Figure 4.6-25

YES

Replace back end

motor.

START

Pit conveyor belt &

drive pulley rubbing

side plate?

Adjust pulley

position.

Defective back end

motor cable?

Replace defective

cable.

Defective back end

motor?

Defective chassis?

Replace chassis.

Correct roller

alignment.

Pit conveyor rollers

out of position?

Jam in pin area

causing motor to

overload?

Remove jam.

YES
