Lubrication
400-088-120-02 Page 4.3-15 Rev. Date: 10/2016
Section 4.3
4.3.11 BACK END SIDE PLATE ASSEMBLY
1. Bracket bearing support assemblies: 2 drops of oil (2 places) every 25,000
frames.
2. Rear roller support weldment bushing (1 place): 1 drop of oil every 100,000
frames.
2
1

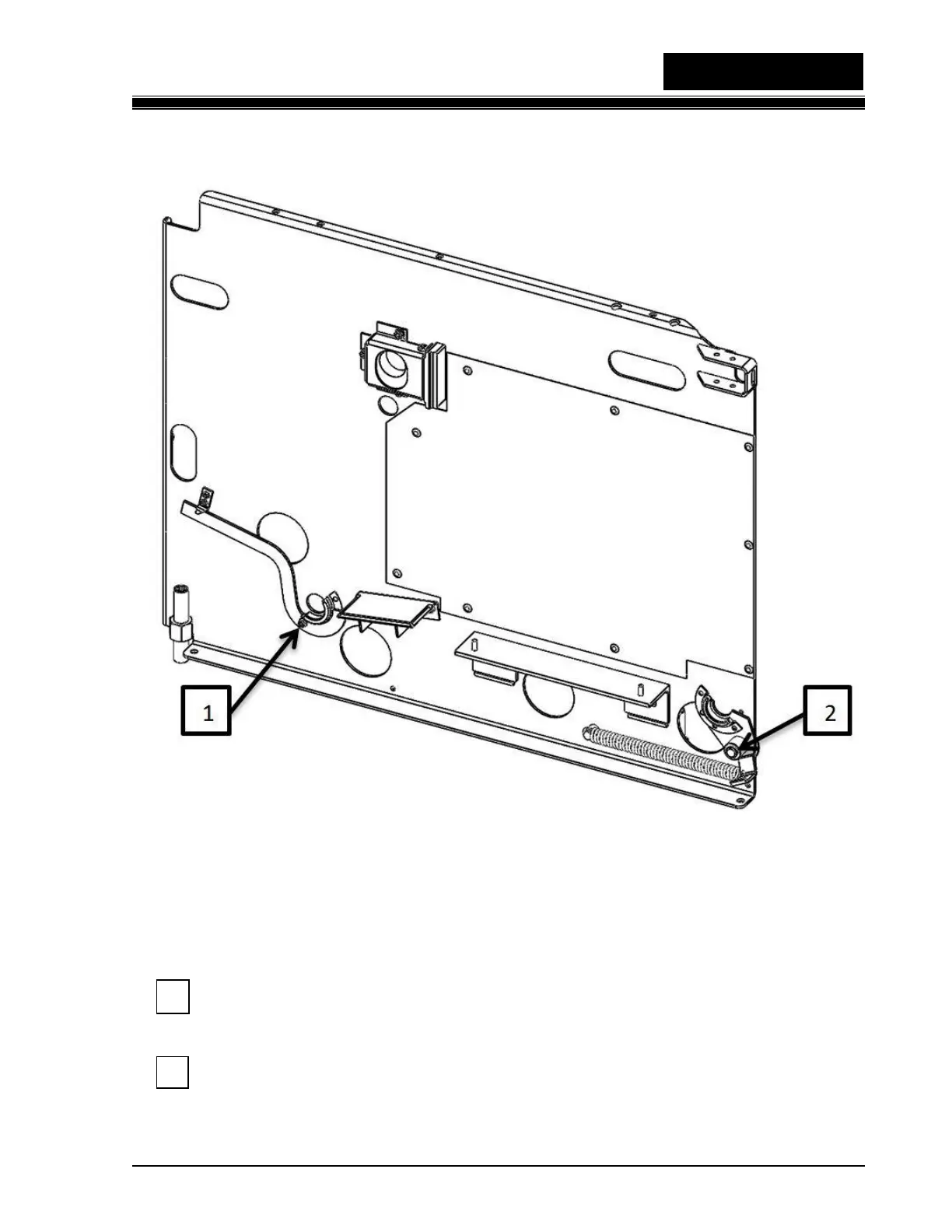

Figure 4.3-11
