QubicaAMF XLi EDGE Series User Manual
4
of 1
of 1 rating
260 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
400
-088-
120
-02
2016 QubicaAMF Wor
ldwide
Page
Rev. Date: 10/2016
5-8
NOTE: Even machine sho
w
n. Odd machine has cab
le duct on the opposite end
of the crossbeam
.
*
FRONT END

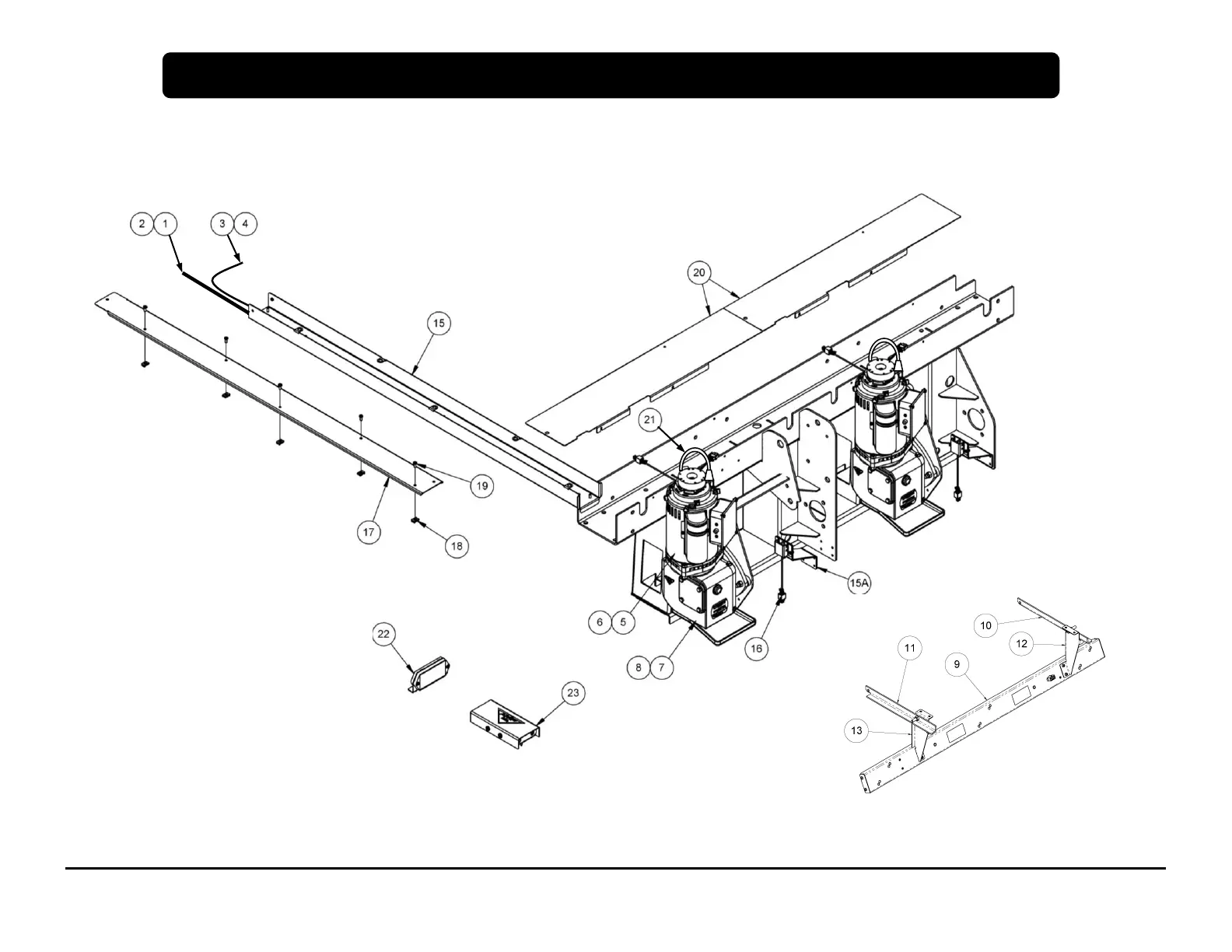

ELECTRICAL INSTA
LLATION
194
196
Table of Contents
Table of Contents
7
How to Use this Manual
11
Manual Layout
11
Maintenance DVD
12
Qubicaamf Worldwide
12
Qubicaamf's Commitment to Quality
13
Safety
15
General Safety Guidelines and Symbols
17
2.2 Safety Procedures and Precautions
20
Section 3.
23
Basic Pinspotter Operation
23
Pinspotter Mechanical Operation
25
Eight Basic Pinspotter Components
25
Five Basic Pinspotter Cycles
28
Pinspotter Electrical Operation
31
Motors
31
Encoders & Switches
32
Protection Devices
32
Bowler's Pit Signal System
33
Frame Counters
33
Machine Pit Time Delay
33
Tenth Frame Button
33
Ball Detector
34
Ball Detector Location
34
Ball Detector Cable Connections
35
Ball Detector Operation
37
Ball Detector System Test
37
Pin Deck Light Operation
39
Chassis
46
Electrical Drawings and Ratings
46
Motors & Gearboxes
46
Pin Distributor
46
Positive Ball Lift (PBL)
46
3.9 Scoring Camera
47
EDGE Performance Lift
47
Manager's Control Unit
47
Pin Sensing Camera
47
Radaray Xli
47
Section 4.1.
48
Service Tool Kits
50
Deluxe Tool Kit
50
Xli Steel Table Tool Kit
52
Motor Crank
52
Service Tools
50
Clipper Belt Lacer (Distributor Belt)
54
Crimping Tool (Typical)
55
Socket and Pin Extraction Tool
56
Section 4.2
58
Machine Adjustments
60
Machine Height and Position Adjustments
60
Tie Rod Adjustment
62
Positioning (Flagging) the Table
65
Spot Rod Adjustment
66
Individual Pin Height Adjustment
67
Individual Spotting Cup ON-SPOT Adjustments
68
Final Spot Checks
69
Spotting Cup Toe-In
69
Spotting Linkage Adjustments
73
Yoke Spring Adjustment
74
Spot and Respot Lever Spring Removal or Replacement
75
Yoke Assembly (X-Frame) Removal
76
4.2.2.18.1 Finger Adjustment
77
4.2.2.18.2 Respot Cell Adjustment
77
Respot Cell Operation & Adjustments
77
Sweep Operation and Adjustments
82
Sweep Adjustments
82
Sweep Operation
82
Sweep Home Position Adjustment
84
St and
85
Sweep Motor and Gearbox Removal
86
Positive Ball Lift
87
Distributor
88
Bin and Shuttle Operation & Adjustment
89
Bin and Shuttle Operation
89
Bin and Shuttle Adjustments
89
Bin Switch Operation
90
Optical bin Switch Adjustment
90
Cushion Operation and Adjustments
91
Cushion Shock Absorber Adjustment
91
Cushion Removal
91
Replacing Urethane Rivets
92
Replacing Cushion Components
92
Pin Conveyor Belt Adjustments
92
Belt Removal Procedure
92
Belt Replacement Procedure
94
Pin Elevator Adjustments
96
Critical Measurements
98
Section 4.3.
100
Lubricant Symbols
102
Lubrication
102
Lubrication Instructions
102
Sweep Drive and Linkages
108
Respot Cells
110
Yoke Assembly
111
Bin & Shuttle Assembly
114
4.3.10 Shock Absorber
115
4.3.11 Back End Side Plate Assembly
116
Section 4.4.
118
Preventive Maintenance
120
Qubicaamf Weekly Preventive Maintenance Chart
120
Preventive Maintenance Schedule
121
Daily
121
Weekly
121
Every 25,000 Frames
122
Every 100,000 Frames
123
Every 200,000 Frames
125
Every 400,000 Frames
125
Pinspotter Protection During Lane Refinishing ( Wood Lanes )
126
Refinishing Wood Lanes
126
Resurfacing Wood Lanes
126
Lane and Pinspotter Cleaning
127
Lane Cleaning
127
Pinspotter Cleaning
127
Pin Changing Procedure
128
Section 4.5.
130
25,000 Frame Maintenance
132
Service the Table Assembly
132
Service the Sweep Assembly
133
Service the Cushion Assembly
133
Service the Distributor Clutch Assembly
133
Service the Shuttle Assembly
133
Maintenance Procedures
132
100,000 Frame Maintenance
134
Check Alignment of the Spot and Respot Cams and Levers
134
Check Centering of the Sweep and Table Home Sensor Discs
135
Check the Sweep Home Stopping Position
135
Check the Table Home Stopping Position
136
Check Light Ball Sensor Operation
137
Clean the Distributor Assembly with a Water-Based Cleaner
137
Service the Distributor Drive Shaft Assembly
137
Service the Cushion Shock Assembly
137
Service the Downsweep and Transition Track
138
Service the Front End Motor (Table & Sweep) Brakes and Encoders
139
200,000 Frame Maintenance
140
Service the EDGE Performance Lift
140
Service the Pit Conveyor Rollers and Pit Assembly
140
400,000 Frame Maintenance
142
Service the Positive Ball Lift (PBL) Assembly
142
Service the Light Ball Sensor (LBS) Assembly
142
Service the Distributor Assembly
143
Service the Table Drive
143
Service the Shuttle Rod Assembly
144
Service the Shifter and Cam Link Needle Bearings
146
Section 4.6.
148
Troubleshooting
150
Troubleshooting Tools
150
Continuity Tester
150
Voltage Tester
150
Respot Cells will Not Pick up or Place Pins
151
Sweep Troubleshooting
160
Sweep Motor Trips Overload
162
Sweep Runs Continuously
164
Sweep Does Not Knock All Pins into Pit
170
Cushion and Pit Troubleshooting
171
Ball Idles at Cushion
171
Ball Failed to Cycle Machine
173
Back End Motor Trips on Overload
175
Chassis Troubleshooting
176
Sweep Time Delay too Long or too Short
177
Motor Troubleshooting
181
Sweep Motor Runs Continuously
182
Front End Motor will Not Run
183
4.6.7 Pin Deck Light Troubleshooting
185
Pin Deck Light will Not Turn on
185
Section 5.0.
186
Drawings (Part Lists Follow each Drawing)
189
Front End Frame & Platform Assembly, Odd Machine
189
Front End Frame & Platform Assembly, Even Machine
191
Front End Electrical Installation
195
Ball Detector Assembly
199
Front End Drive
201
Solenoid & Shuttle Operating Assembly
203
Spot & Respot Linkages
207
Sweep Arm Assembly
209
Sweep Bar & Mounting Assembly
211
Tie Rod Bracket Assembly
217
Front Actuator & Connector Assemblies
219
Respot Cell Assembly, Cells 1 through 6
225
Respot Cell Assembly, Cells 7 through 10
227
X-Frame to Table Connections
229
Yoke & Spotting Cup Assembly
231
Durabin II Assembly
233
Durabin II Shuttle Actuator
235
Back End Assembly
239
Kickback Plate Assembly- Ball Exit Side
241
Kickback Plate Assembly- Side Opposite Ball Exit
243
Bounce Plate & Roller Assembly
245
Cushion, Curtain, & Shock Absorber Assembly
247
Back End Drive Motor & Bracket Assembly
249
Chassis & Mounting Bracket Assembly
251
Guards & Safety Labels
253
Index
256
