Section 5.0
Drawings and Part Numbers
The drawings and parts lists in this section contain information that can be used for identifying and
ordering replacement parts for your XLi EDGE Pinspotters. Becoming familiar with the numbering
format used in this section will help you select the correct parts for your machine.
Because the older Left Hand (LH) / Right Hand (RH) convention for identifying machines and parts
caused confusion, machines are now designated either EVEN or ODD based on whether they are
normally installed on an even or odd numbered lane. For identifying similar parts within a machine
(often mirror-image parts designed for a specific location), the designations 7-PIN SIDE and 10-PIN SIDE
are now used, as these locations are easily identified and are independent of the point of reference, (i.e.
from behind the machine or in front of the machine).

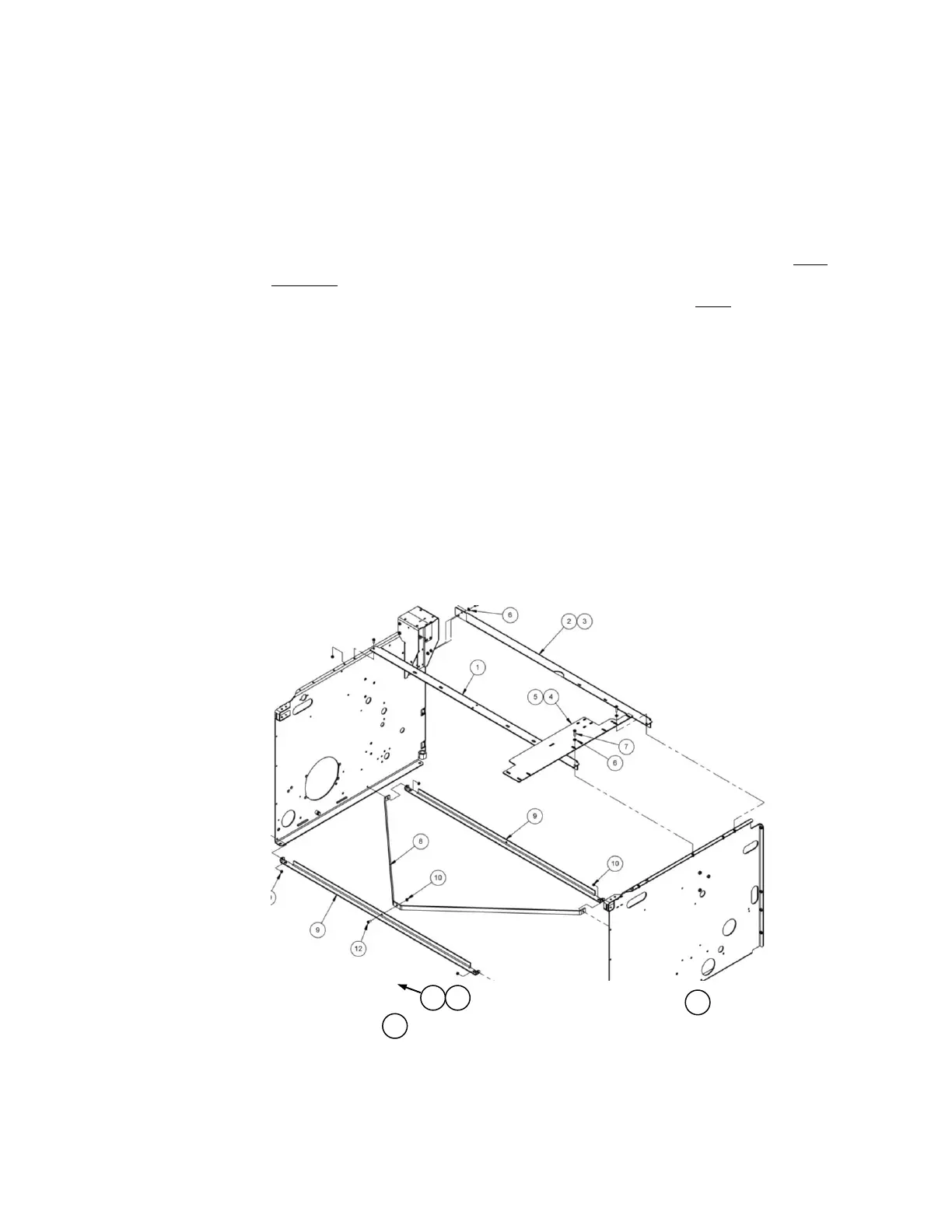

Often a single drawing is used to represent both the even and odd pinspotters (as shown below)
because most of the parts that are being called out are common to both pinspotters. Occasionally two
or more item numbers are shown associated with a single part (see items 2 & 3 and 4 & 5). When
ganged item numbers refer to the same part in the drawing, the item number with the line pointing to
the part is the one that is actually depicted (item 2 here). In the parts list, Item 2 also carries an EVEN
MACHINE designation while item 3 carries an ODD MACHINE designation. In this case, the illustrated
part is the part on the EVEN pinspotter. The part called out as item 3 is not shown and may be a mirror
image of item 2 or may have other physical differences, but provides the same function on the ODD
pinspotter and carries a different part number. Both part numbers are included in the parts list. Be sure
to read the descriptions carefully.
Some ganged item numbers, for example, , represent a main component and an assembly
that contains the main component . Assemblies contain two or more parts (refer to the assembly’s
item description to see which parts are included in the assembly), and may be the more efficient or
convenient means of replacing the main component. The part numbers for both the main component
and the assembly are listed separately.
400-088-120-02 Rev. Date: 10/2016 Page 5-1 Section 5
