 The sweep drops to the 1
st
guard position and then completes its sweeping
operation of the pin deck.
 The table, when full of pins, begins its spotting operation. The table cups
swing down and deposit a full set of pins.
 The table and sweep return to the home position. A score of zero pins has
been registered.
 The machine is ready for a second ball with the second ball light on.
5. Second Ball Foul Cycle
 Should the bowler commit a foul when delivering the second ball, The foul
detector unit operates the foul light and bell or buzzer.
 The sweeps standing and fallen pins without a scoring time delay and
returns to the 1
st
guard position.
 A score of zero pins is registered for the second ball.
 The table receives its spotting signal and the spotting cups swing
downward to set up a complete set of pins.
 The table and sweep return to the home position, and the first ball light
comes on.

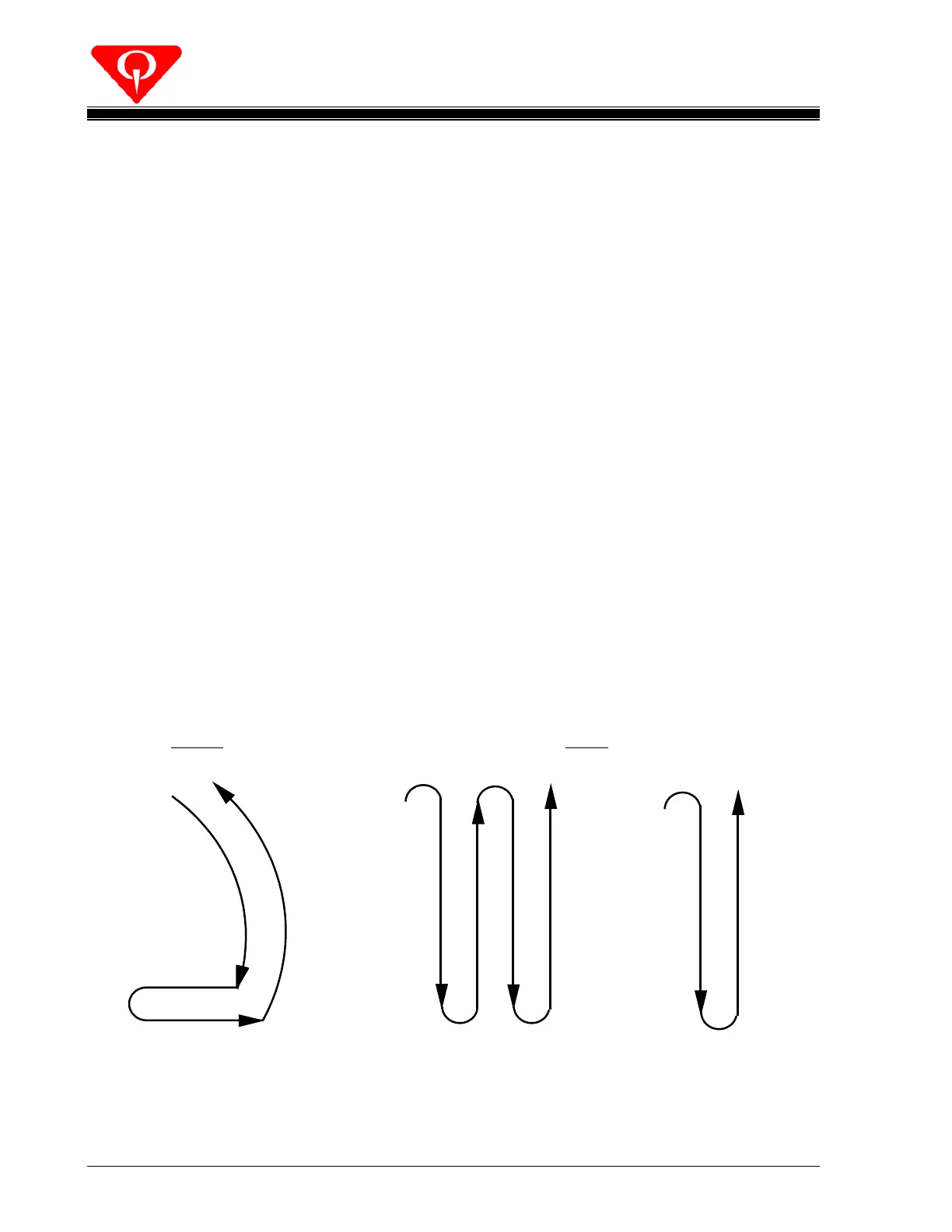

Sweep Table
0° 360° 0° 355° 0° 355°
355°
66°
Run Through
270°
Figure 3-9
180°
+
Second Ball
Foul
180°
+
First Ball Strike
Without AccuScore
