XLi EDGE Pinspotter
Section 4-2 4.2-22 Rev. Date: 10/2016

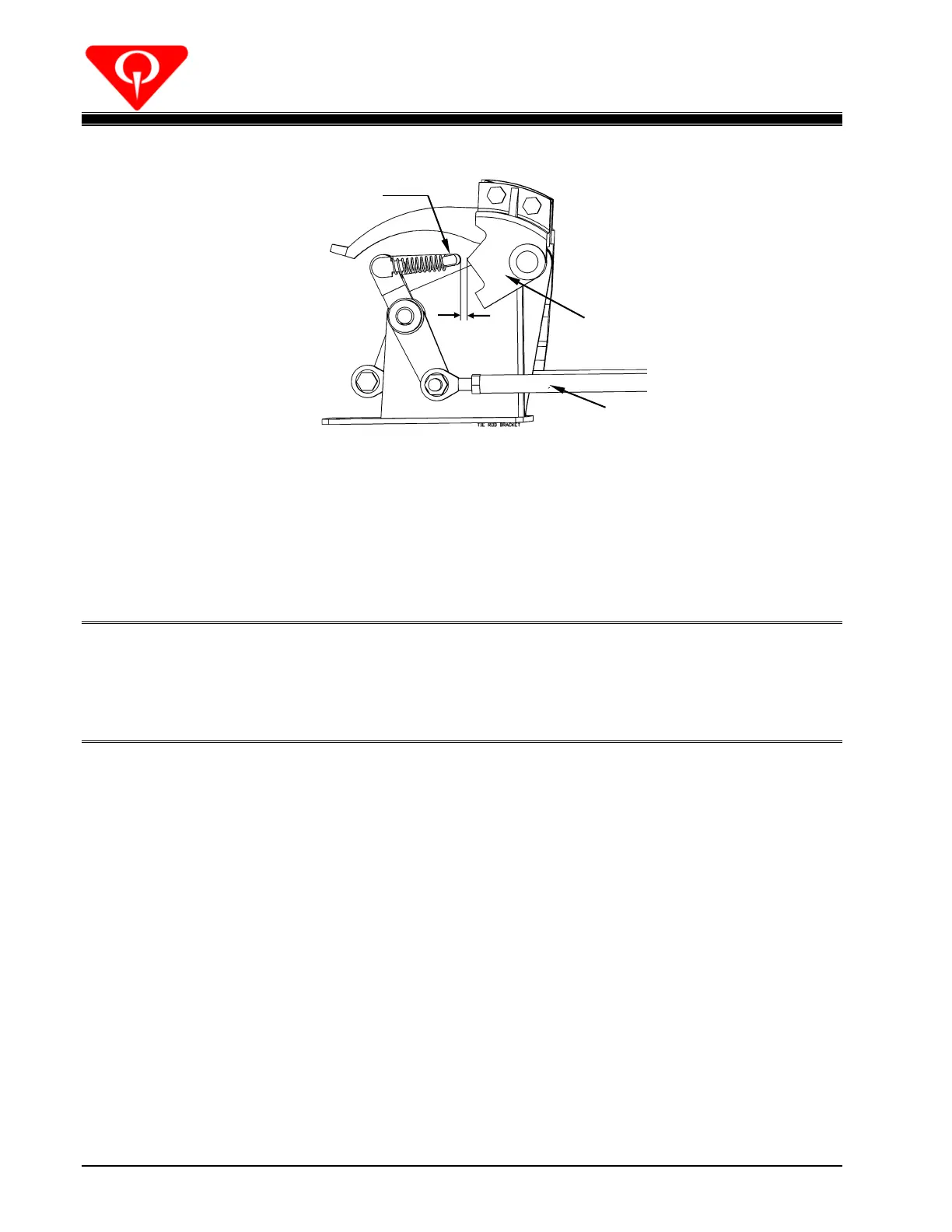

Figure 4.2-24
21. Run the table though a respot cycle. The cell fingers should open and close at the lowest
point of the stroke. If the fingers appear to open and close too early, shorten the respot rod
to increase the clearance between the pawl and shifter link. If the fingers appear to open
and close too late, lengthen the respot rod accordingly.
Note: When the fingers are adjusted properly, all of the pins should be held at the same point
(near the top ring) on the neck. This will cause all of the pins to contact the pin deck at
the same time minimizing respotting problems. If one or more pins are not being picked
up in this manner, readjust those cells in accordance with Section 4.2.2.18.1.
4.2.2.19 Table Motor and Gearbox Removal
For table drive motor and gearbox removal, refer to the XLi Pinspotter Motor & Gearbox Manual,
P/N 400-088-038.
