XLi EDGE Pinspotter
Section 4-2 4.2-24 Rev. Date: 10/2016
2. Adjust the long connecting rod (see above) to obtain approximately 1/2-inch of clearance
between the stabilizing link and the frame (see Figure 4.2-26) when the sweep is in the home
position. The clearance must be sufficient to keep the sweep from contacting the frame
during sweep operation.

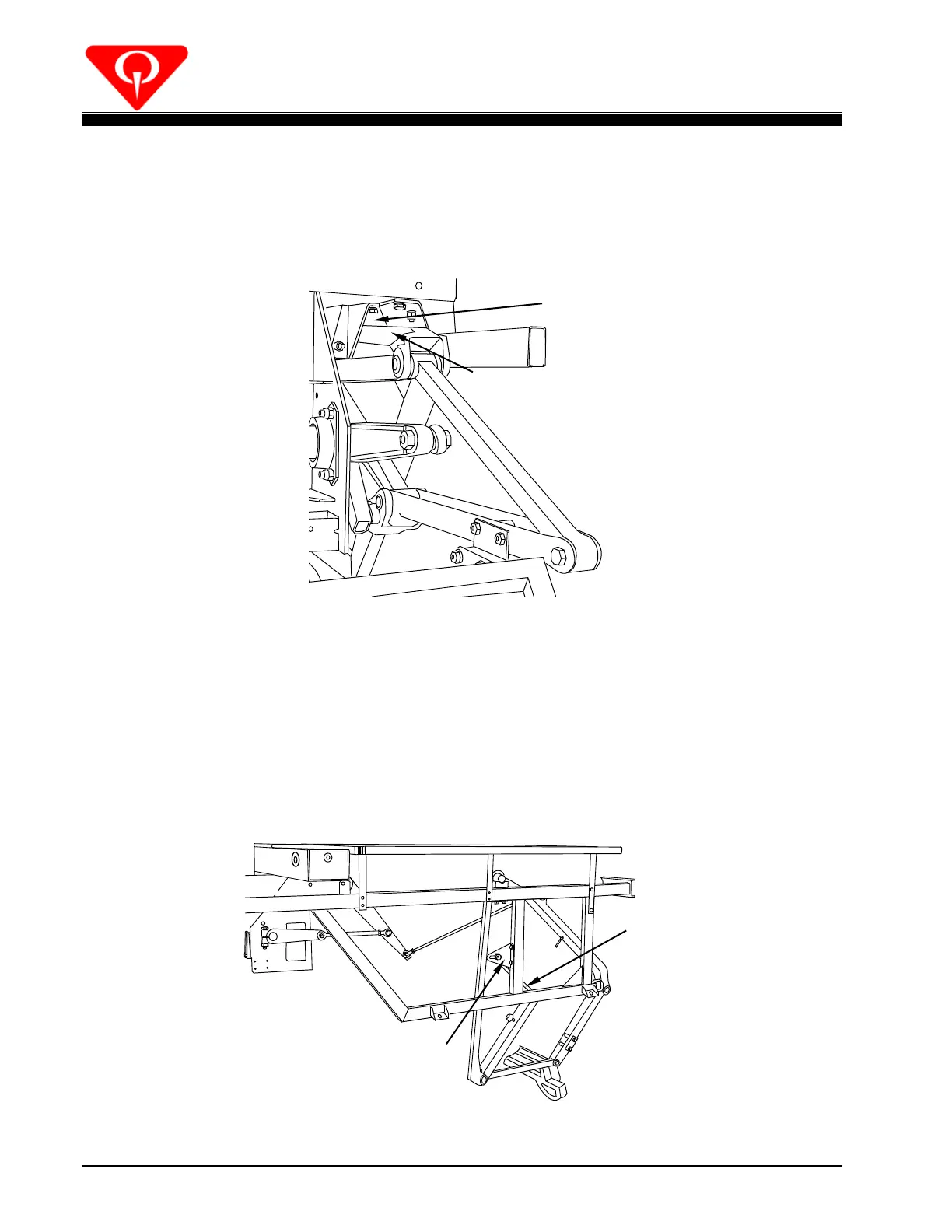

Figure 4.2-26
3. Manually crank the sweep to its lowest point at the 1
st
guard position. The sweep bar should
clear the pin deck by approximately 1-1/8 inch. This can be checked and set using the
pinspotter multigage (088-001-216).
a. To increase the clearance between the sweep bar and the pin deck, loosen the nut where
the telescoping link connects to the slotted pivot bracket on the vertical frame member
(see Figure 4.2-27), and move the end of the telescoping link toward the front of the
pinspotter. Retighten the nut.
Figure 4.2-27
Maintain sufficient
clearance (~1/2 inch)
to keep from hitting
frame.
