[SENSe<[1]..4>][:POWer]:TSLot:[AVG]:WIDTh <time>
Sets the length of the timeslot in the Timeslot mode (see figure below).
Trigger level
Power
Time
Trigger event
SENS:TSLOT:WIDTH
SENS:TSLOT:MID:OFFS:TIME
SENS:TSLOT:MID:TIME
T'Slot 1 T'Slot 2 T'Slot 3
SENS:TSLOT:COUNT 3

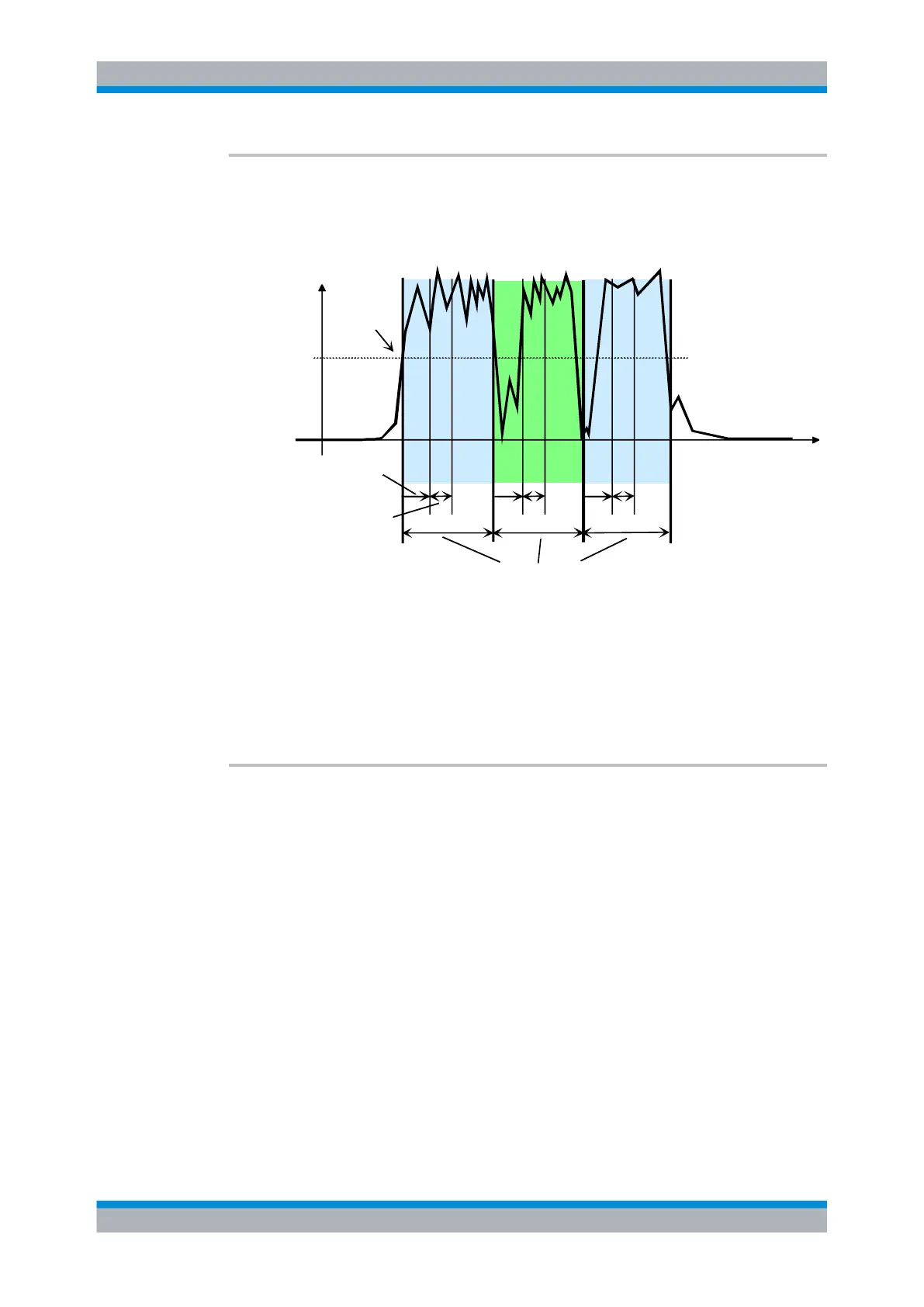

Fig. 6-13: Timeslot parameters
Parameters:
<time> float_value
Range: depending on sensor
*RST: depending on sensor
Default unit: S
[SENSe<[1]..4>]:RGAMma[:MAGNitude] <magnitude>
The SENSe:RGAMma command group compensates for the reflection of the load at the
signal output. Such a compensation is necessary if the VSWR exceeds a value of 1.05.
Otherwise data sheet specifications for absolute accuracy cannot be met reliably.
To compensate for reflection, the magnitude of the reflection coefficient of the load with
the SENSe:RGAMma:MAGNitude setting and the phase angle with the
SENSe:RGAMma:PHASe setting must be transferred. To deactivate reflection compen-
sation, SENSe:RGAMma:MAGNitude 0 must be set. Unlike with mismatch correction,
there is no special activation/deactivation command. Reflection compensation should
remain deactivated if the values measured for the load reflection coefficient are disput-
able.
Parameters:
<magnitude> float_value
Range: depending on sensor
*RST: depending on sensor
