124
6.5 Setting Registers
Set a value of the program counter before executing the program.
• Select [Registers] from the [CPU] submenu of the [View] menu. The [Register] window is displayed.

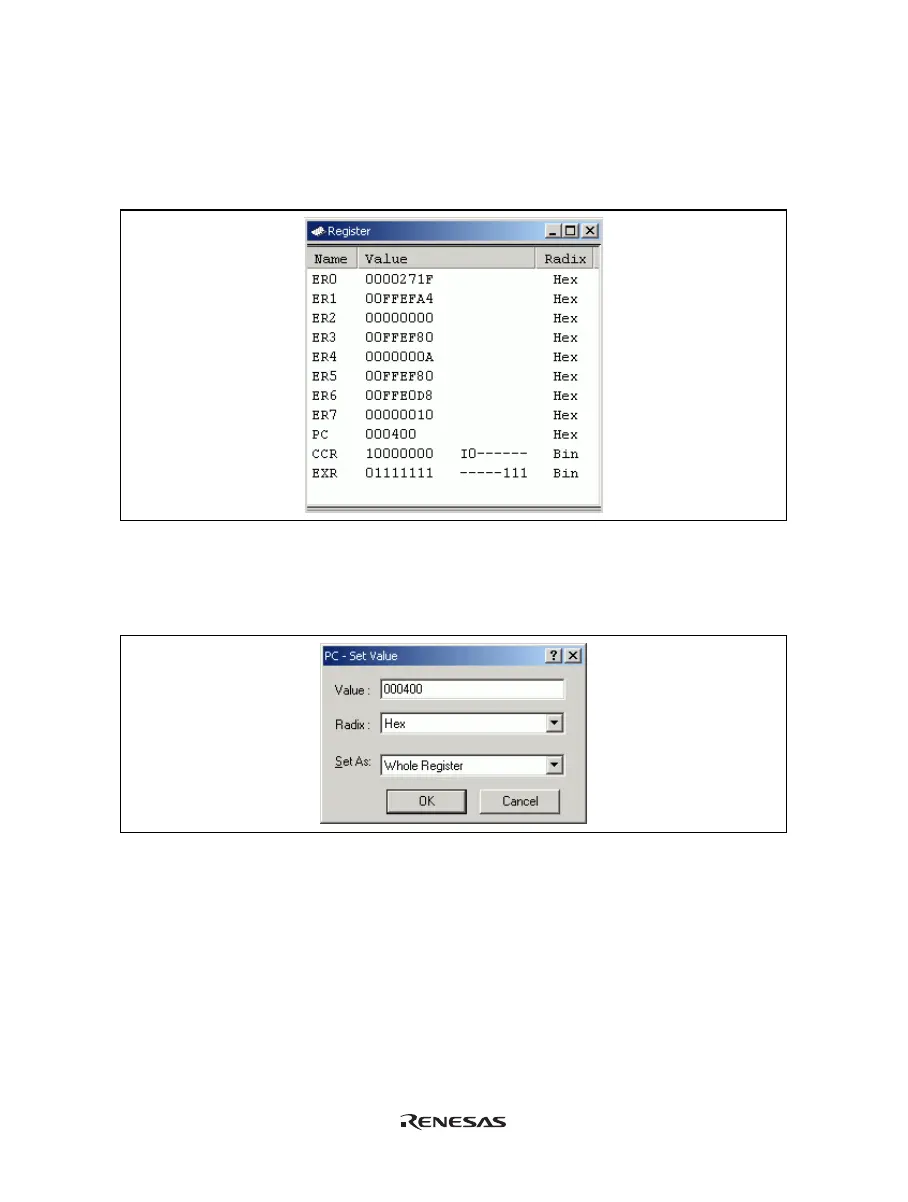

Figure 6.5 [Register] Window
• To change the value of the program counter (PC), double-click the value area in the [Register] window with
the mouse. The following dialog box is then displayed, and the value can be changed. Set the program
counter to H’00000400 in this tutorial program, and click the [OK] button.
Figure 6.6 [Register] Dialog Box (PC)
To Next Page
