6.18 Performance Measurement Function
Performance measurement by the emulator is in the following modes:
• Time Of Specified Range Measurement
• Start Point To End Point Measurement
• Start Range To End Range Measurement
• Access Count Of Specified Range Measurement
• Called Count Of Specified Range Measurement
In this tutorial, we describe the Time Of Specified Range Measurement.
6.18.1 Time Of Specified Range Measurement
(1) Select [Performance Analysis] from the [Performance] submenu of the [View] menu to display the [Select
Performance Analysis Type] dialog box.

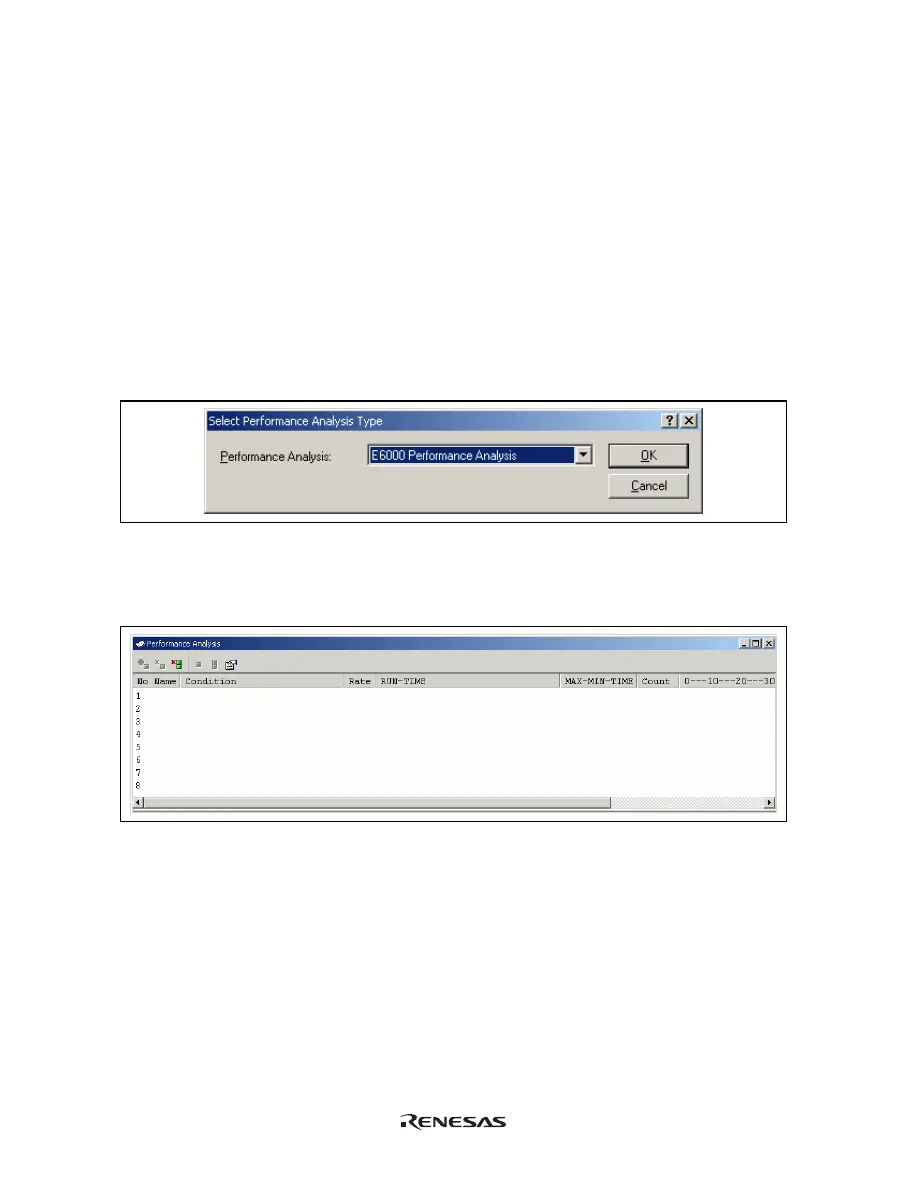

Figure 6.62 [Select Performance Analysis Type] Dialog Box
(2) Select “E6000 Performance Analysis” from the [Performance Analysis] combo box in the [Select
Performance Analysis Type] dialog box and click the [OK] button. The [Performance Analysis] window will
be displayed.
Figure 6.63 [Performance Analysis] Window
