34
4.1.3 Selecting an Existing Workspace
1. In the [Welcome!] dialog box that is displayed when the High-performance Embedded Workshop is activated,
select [Browse to another project workspace] radio button and click the [OK] button.

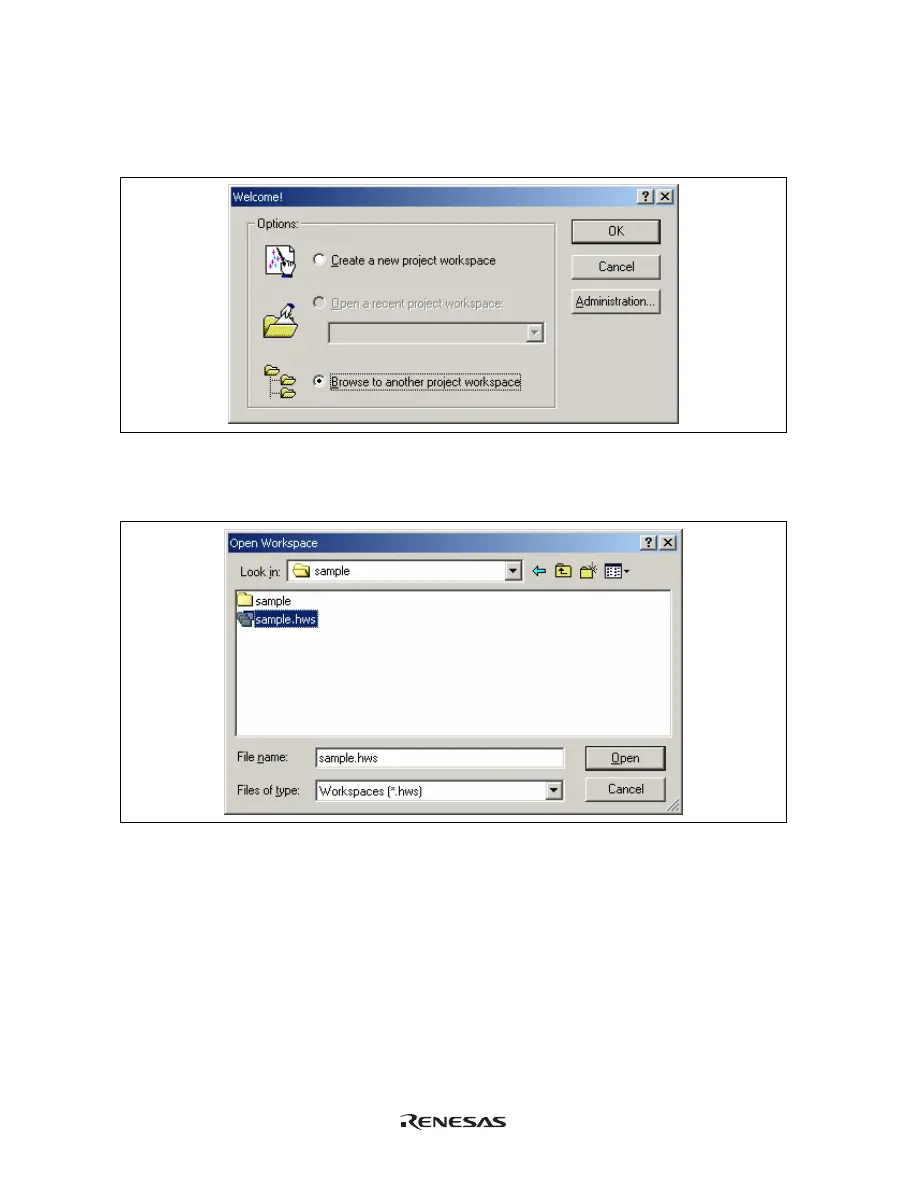

Figure 4.10 [Welcome!] Dialog Box
2. The [Open Workspace] dialog box is displayed. Select a directory in which you have created a workspace.
After that, select the workspace file (.hws) and press the [Open] button.
Figure 4.11 [Open Workspace] Dialog Box
3. This activates the High-performance Embedded Workshop and recovers the state of the selected workspace
at the time it was saved.
When the saved state information of the selected workspace includes connection to the emulator, the
emulator will automatically be connected. To connect the emulator when the saved state information does not
include connection to the emulator, refer to section 4.2, Connecting the Emulator.
