5.4.2 Selecting Items to be Displayed

Selecting [Properties…] from the popup menu displays the [Extended Monitor Configuration] dialog box.

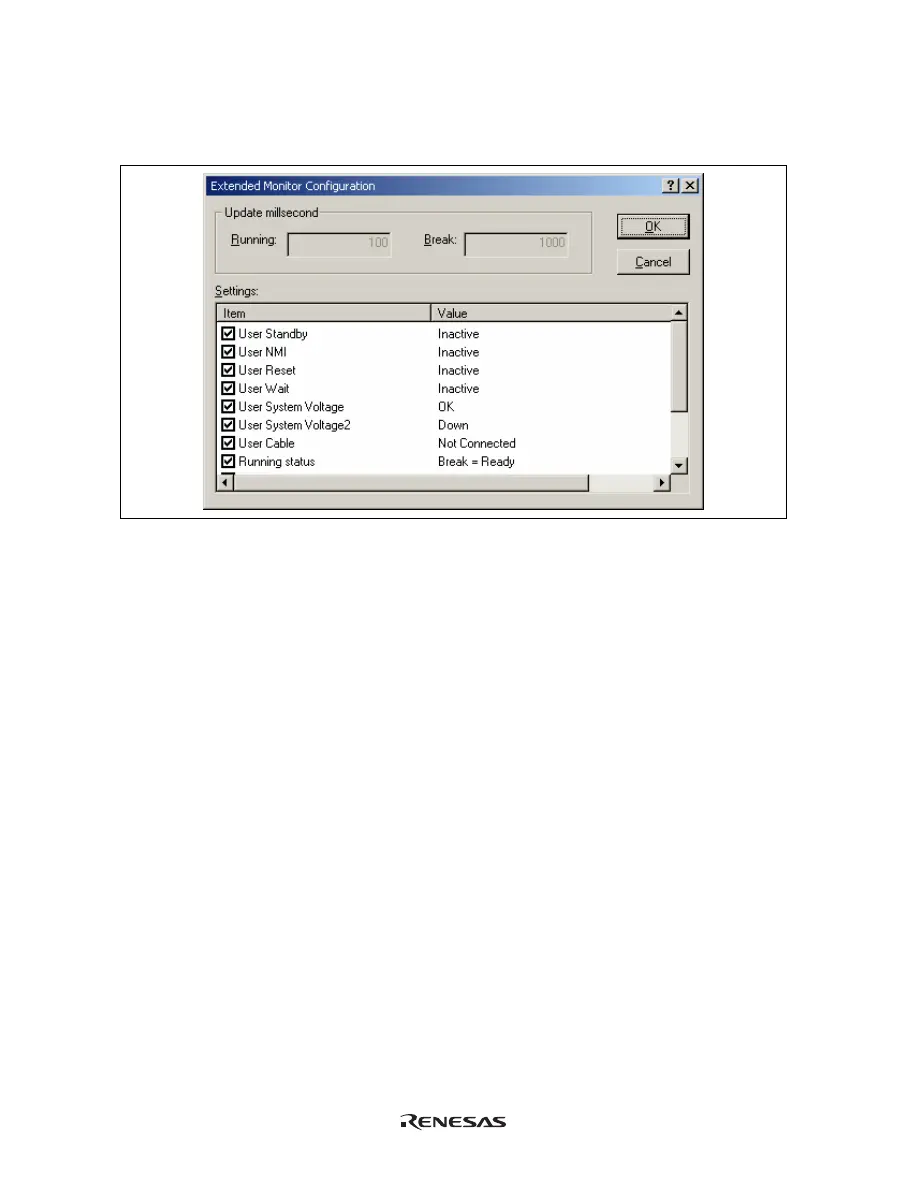

Figure 5.13 [Extended Monitor Configuration] Dialog Box

This dialog box allows the user to set the items to be displayed in the [Extended Monitor] window.

Note: The items that can be set in this dialog box vary according to the emulator in use. For details, refer to

section 8, Software Specifications Specific to This Product, or the online help.
