Renesas H8 Series User Manual

12
2.7 System Check
When the software is executed, use the procedure below to check that the emulator is connected correctly. Here,
use the workspace for a tutorial provided on the product.
Refer to section 2.9, Other Methods for Activating the Emulator, for the other activating method to create a new
project or use a workspace for the High-performance Embedded Workshop of the old version.
1. Connect the emulator to the host computer.
2. Connect the user system interface cable to the connector of the emulator.
3. Turn on the emulator.
4. Activate the High-performance Embedded Workshop from the [Programs] in the [Start] menu (figure 2.11).

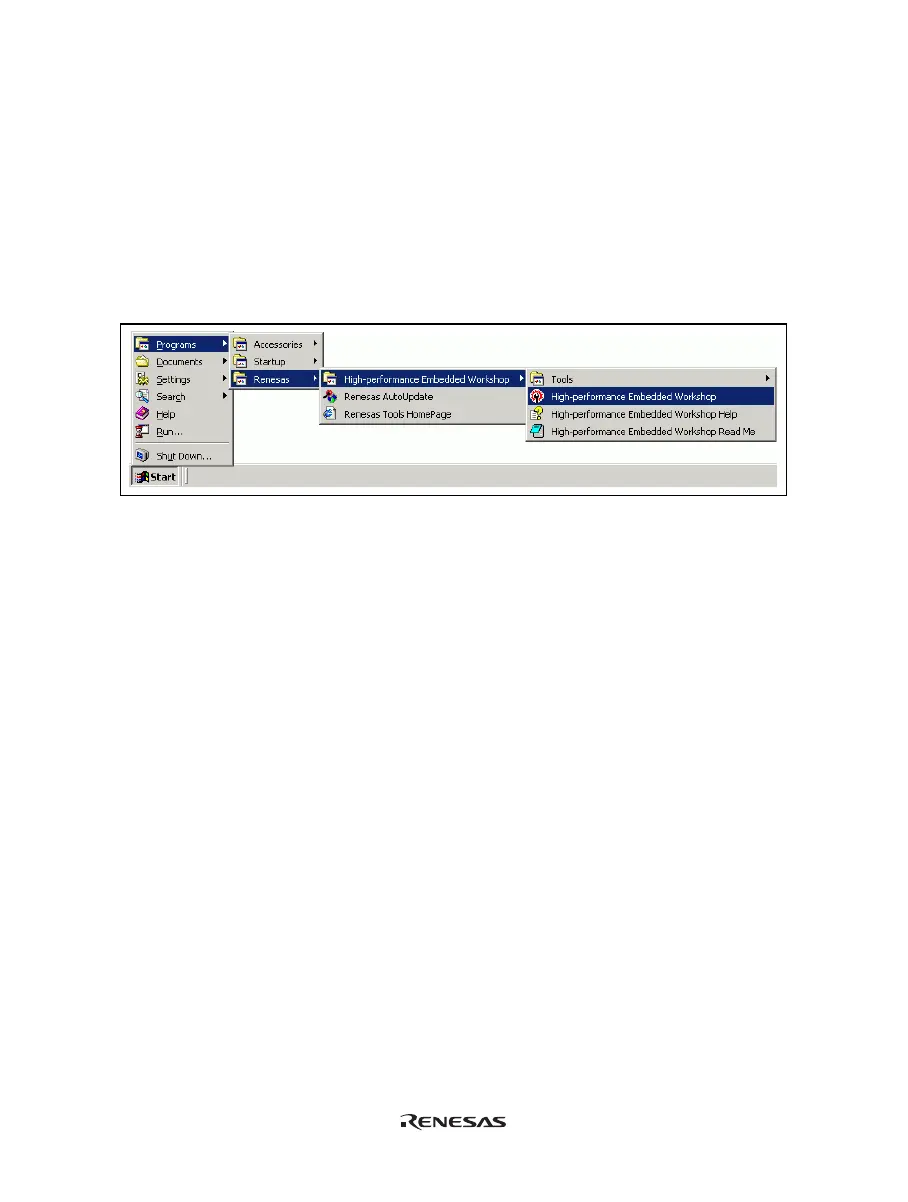

Figure 2.11 [Start] Menu
Note: If ‘LAN Driver’ is not selected at installation, [Tools] is not displayed.
