Pin 1
Serial EEPROM board
Serial EEPROM socket
M1

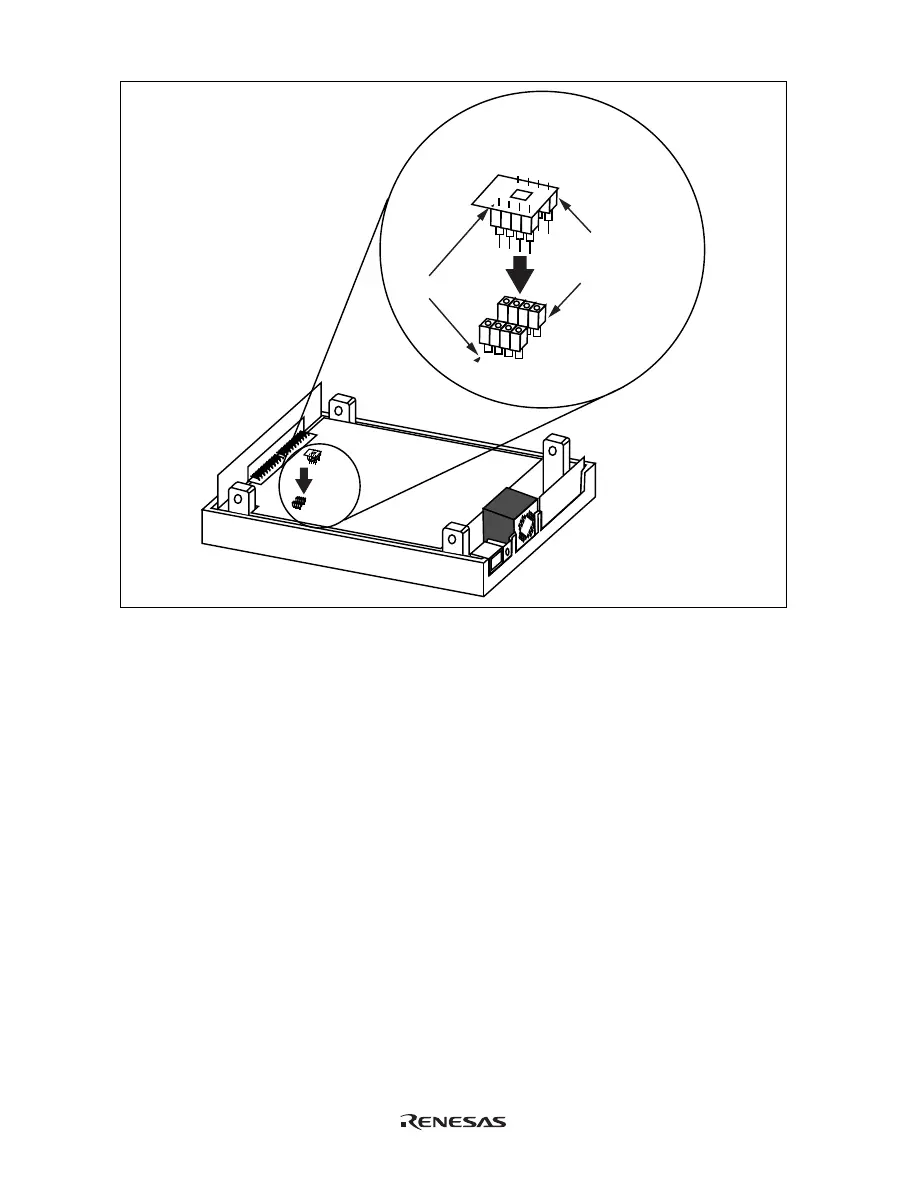

Figure 7.6 Installing Serial EEPROM Board
7.5 Host PC Interface
This emulator (HS3664EPI62H) incorporates a USB interface circuit as the host PC interface. The specifications
of this emulator comply with USB 1.1 (full speed) and can also be connected to a USB 2.0 host computer.
Connecting the attached USB interface cable to the host computer enables a direct connection between the host
computer and the emulator. Thus connection of the USB interface adapter for the E6000 (such as
HS6000EIU02H) is no longer necessary. To use a host PC interface other than USB (PCI, PCMCIA, or LAN),
prepare a corresponding host PC interface board for the E6000 separately sold and connect it to the emulator.
Note, however, that the USB interface will not be available if a PC interface cable is connected to the emulator.
To enable the USB interface function, disconnect the PC interface cable from the emulator. The USB interface is
also not available with the Windows NT
®
environment.
