6.16.3 Statistics
The number of times the internal RAM has been written to can be included in the acquired trace information.
(1) Make the setting such that a break occurs at the address on the line that has ‘p_sam->s0=a[0];’ within the
tutorial function (H’00001082 in this example) (for details on this, refer to section 6.15.1, Software
Break Function).
(2) Select [Reset Go] from the [Debug] menu. Processing stops when the break condition is satisfied, and the
[Trace] window then displays trace information.
(3) Select [Statistic…] from the popup menu that is displayed when you click the right-hand mouse button on
the [Trace] window. A message box appears, indicating that the trace data is being loaded, and the
[Statistic] dialog box will be displayed.

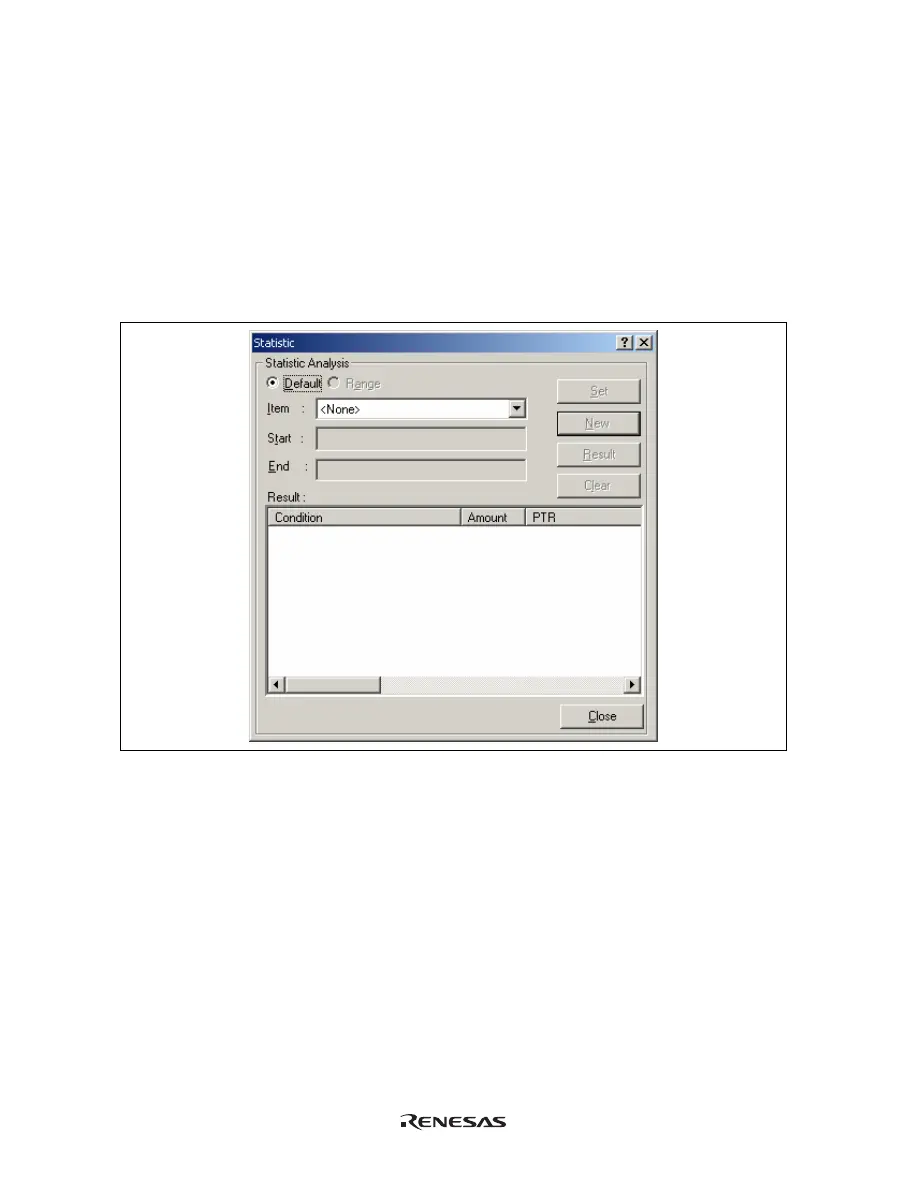

Figure 6.54 [Statistic] Dialog Box
