7

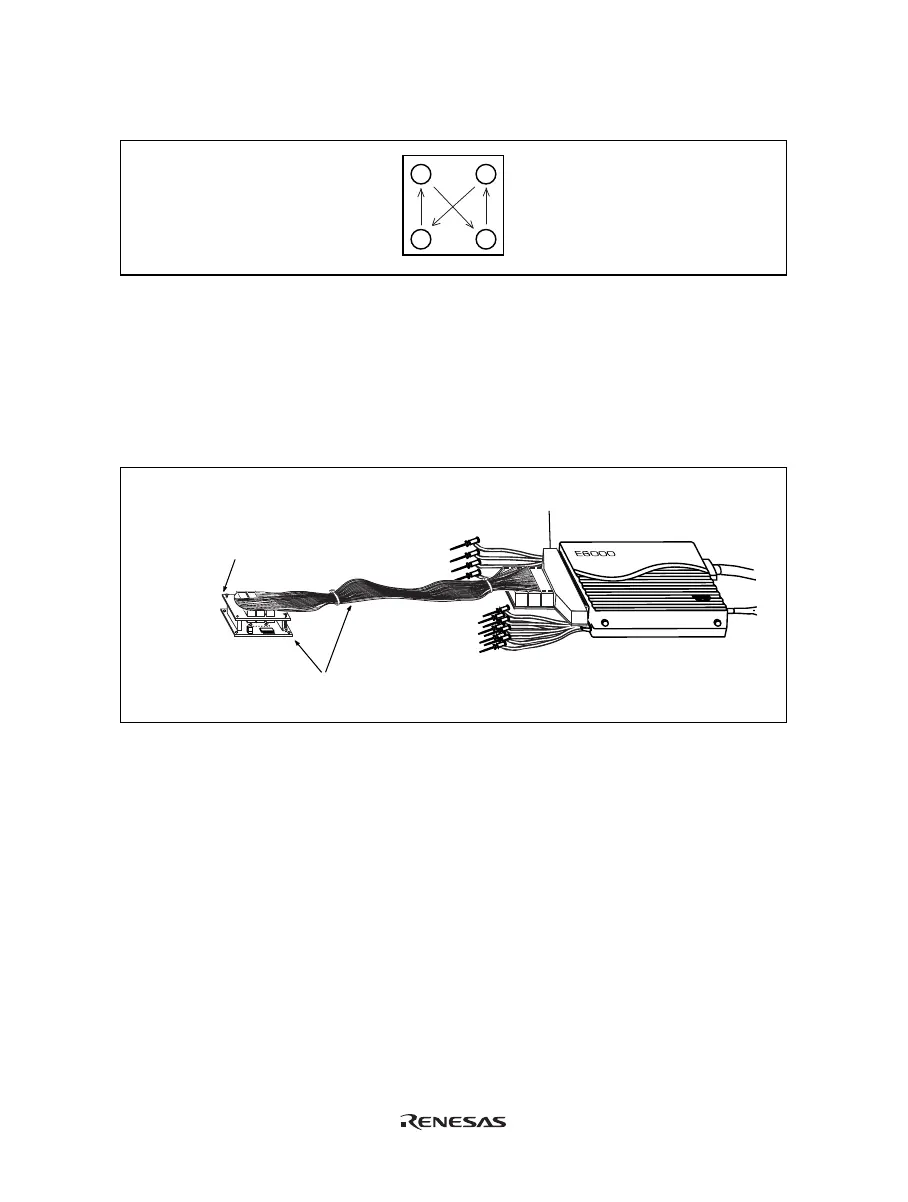

• Screw the cable head to the socket with the screws provided. Progressively tighten the screws in the sequence
shown in figure 2.4 until all are ‘finger tight’.
1 3
4 2
Figure 2.4 Sequence of Screw Tightening
Note: Be careful not to over-tighten the screws as this may result in contact failure on the user system or
damage the cable head. Where provided, use the ‘solder lugs’ on the QFP socket to provide extra
strength to the emulator/user system connection.
2.3.2 Plugging the User System Interface Cable Body into the Emulator
Plug the cable body into the emulator, taking care to insert it straight, and push it firmly into place.
User system interface cable body
User system interface cable head
EXT1
EXT2
P
O
W
E
R
RU
N
Emulator
User system interface cable
Figure 2.5 Plugging User System Interface Cable Body to Emulator
2.3.3 Plugging the User System Interface Cable Body into the Cable Head
Plug the cable body into the cable head on the user system.
