8.1.14 Reading from and Writing to the EEPROM
With this emulator, users can view and write to memory areas in the EEPROM. This section describes how to
look at memory areas and how to fill and move a memory block.
(1) Viewing a Memory Area in the EEPROM
To look at a memory area in the EEPROM, choose [View -> CPU ->EEPROM…] or click the [EEPROM]
toolbar button (
) to open the [EEPROM] window. This will open the [Properties] dialog box shown in
figure 8.3.

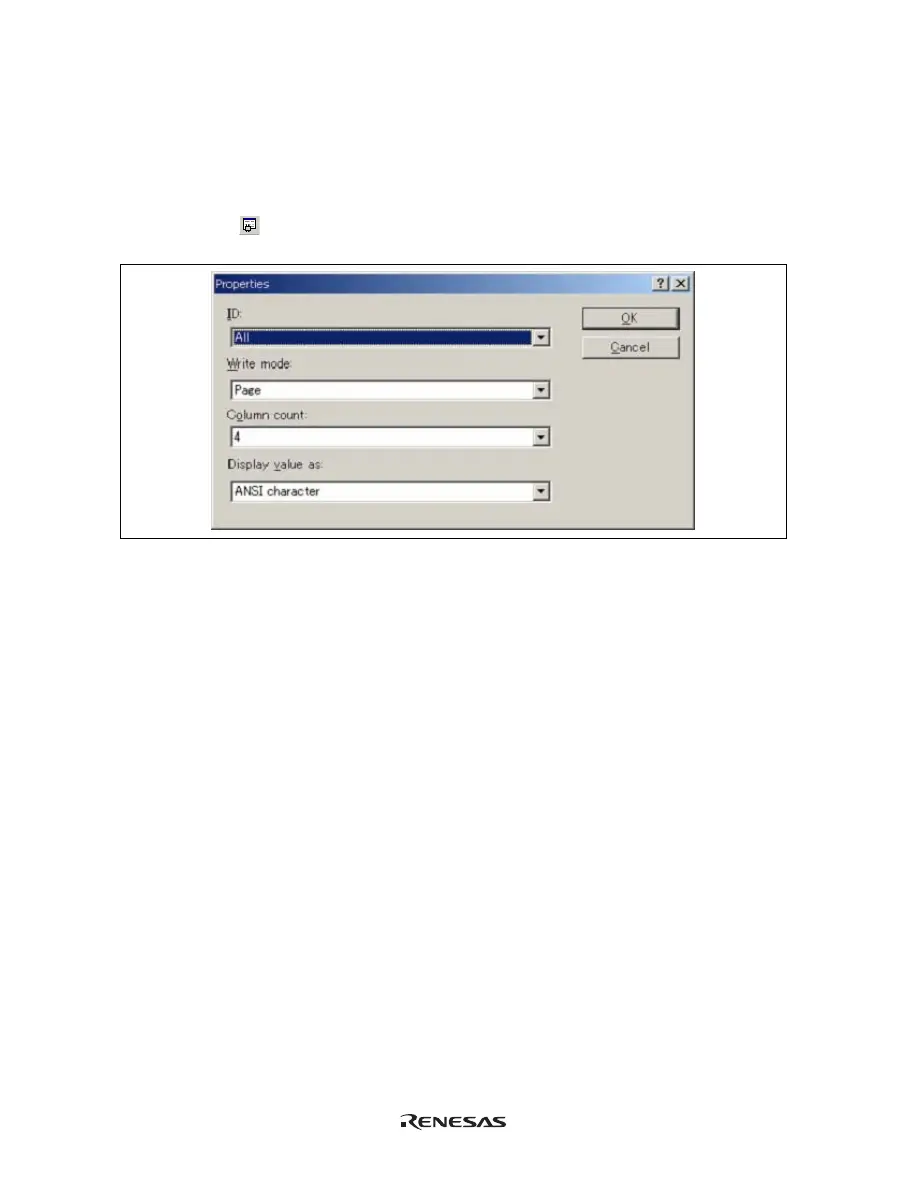

Figure 8.3 [Properties] Dialog Box
Select the range of slave addresses of the EEPROM you wish to display from the [ID] combo box. [All]
displays all memory areas in the EEPROM incorporated in the emulator. Select mode to write to memory
from the [Write mode] combo box. Then select the number of columns to be displayed in a row from the
[Count column] combo box and the format for display of data from the [Display value as] combo box. Click
the [OK] button or press the [Enter] key, and the dialog box closes and the [EEPROM] window opens. The
display can be scrolled within the range of the selected slave addresses.
