197

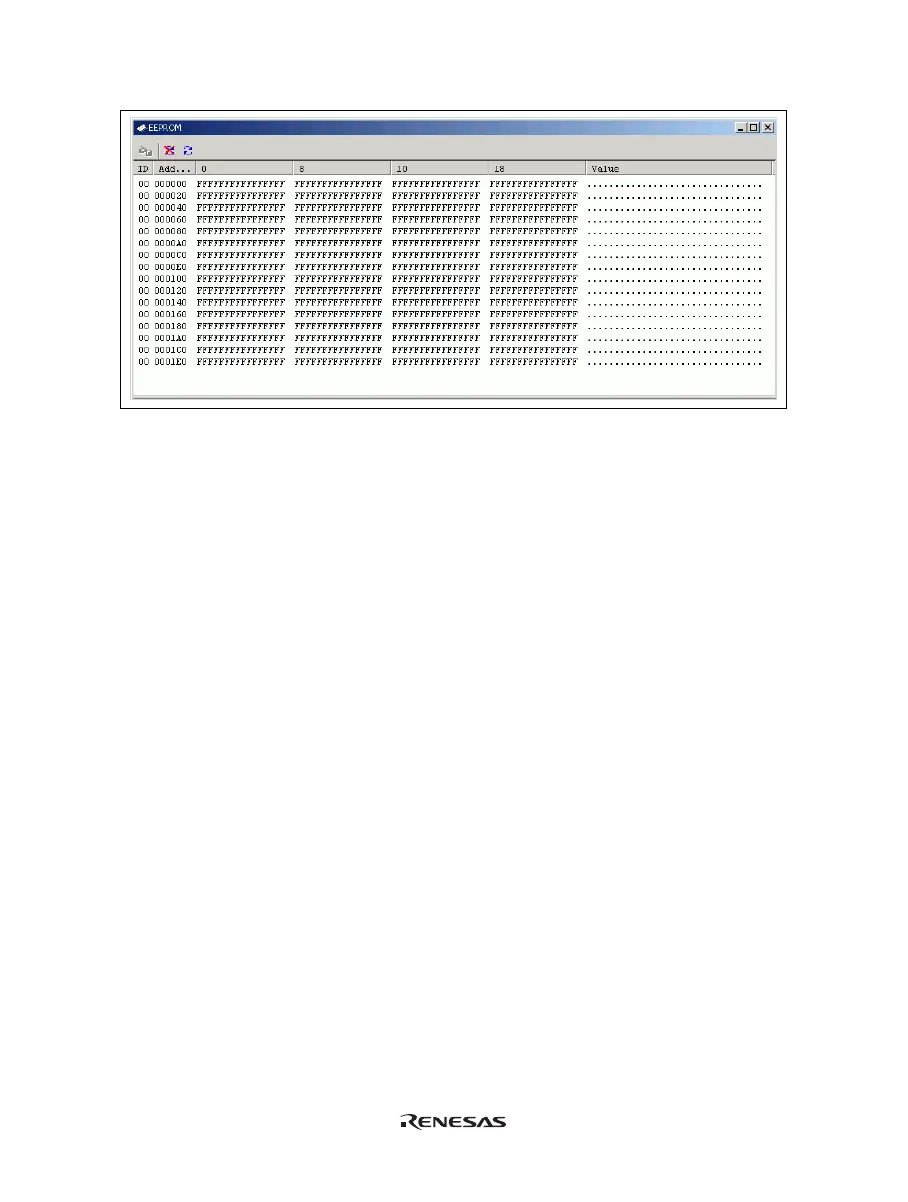

Figure 8.4 [EEPROM] Window
The [EEPROM] window has [ID], [Address], [Value], and data columns. The number of data columns is that
selected in the [Column count] combo box. Each of the columns is displayed in hexadecimal.
[ID]: Slave address of the EEPROM.
[Address]: Address of the first item in the data columns of this row.
Data: Data is read from the EEPROM, and then converted to the display width.
[Value]: Data displayed in an alternative format.
(2) Viewing a Different Memory Area
To change the memory area displayed in the [EEPROM] window, use the [Properties] dialog box. This box
can be opened by choosing [Properties…] from the popup menu.
Select the new slave address value, and click the [OK] button or press the [Enter] key. The dialog box closes
and the [EEPROM] window display is updated with the data at the new address.
