6.16.1 Displaying a Trace (when Time Stamping is not Available)
The method used to specify an address as an event condition for the tracing of read/write cycles and display the
trace is described below.
(1) Clicking the right-hand mouse button on the [Trace] window displays a popup menu. Select [Acquisition…]
from this menu to display the [Trace Acquisition] dialog box.

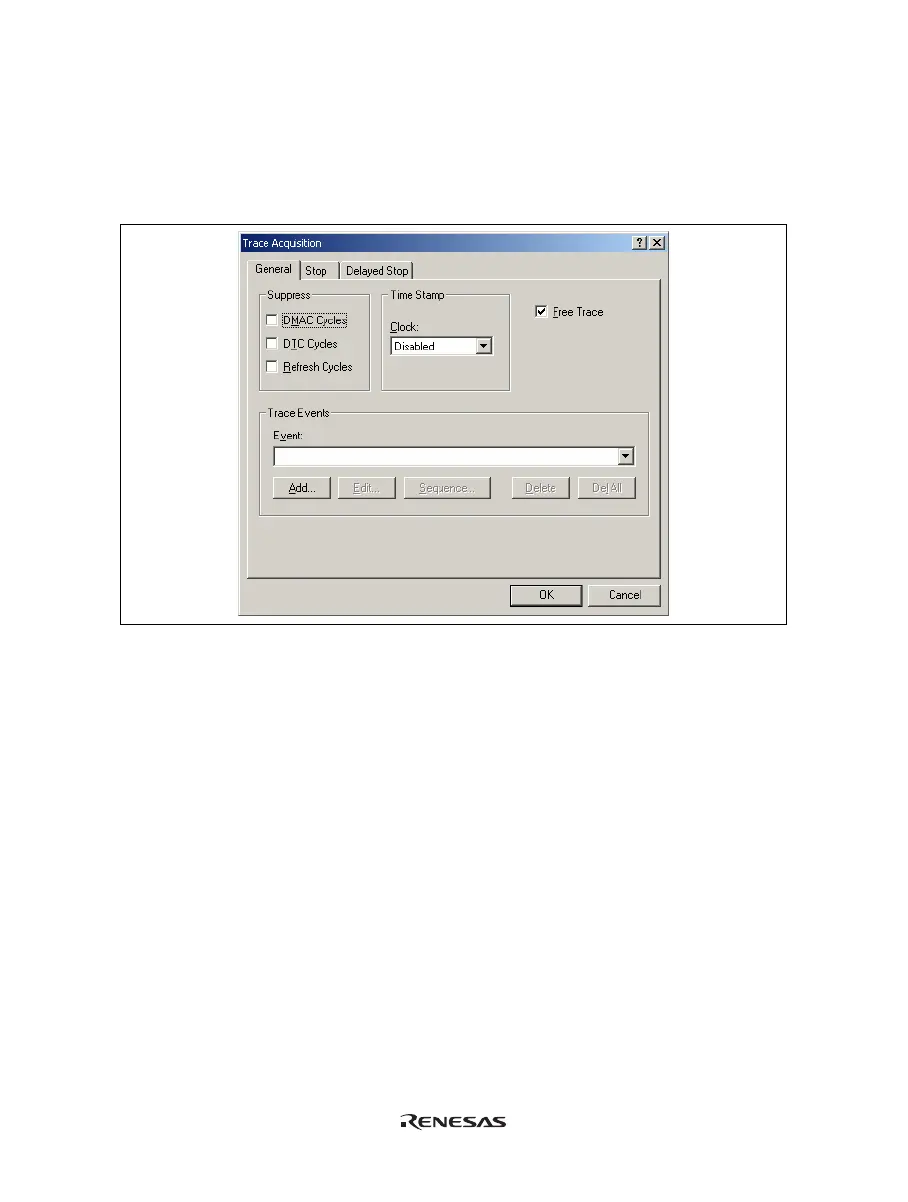

Figure 6.41 [Trace Acquisition] Dialog Box
