Renesas H8 Series User Manual

140
6.15 Break Function
The emulator’s break functions are of two types: software breaks and breaks at event points. software
breakpoints and event points are set in the High-performance Embedded Workshop’s [Event] window.
An overview and setting of the break function are described below.
6.15.1 Software Break Function
The emulator can set up to 256 software breakpoints.
• Select [Eventpoints] from the [Code] submenu of the [View] menu. The [Event] window is displayed.
• Select the [Breakpoint] sheet.

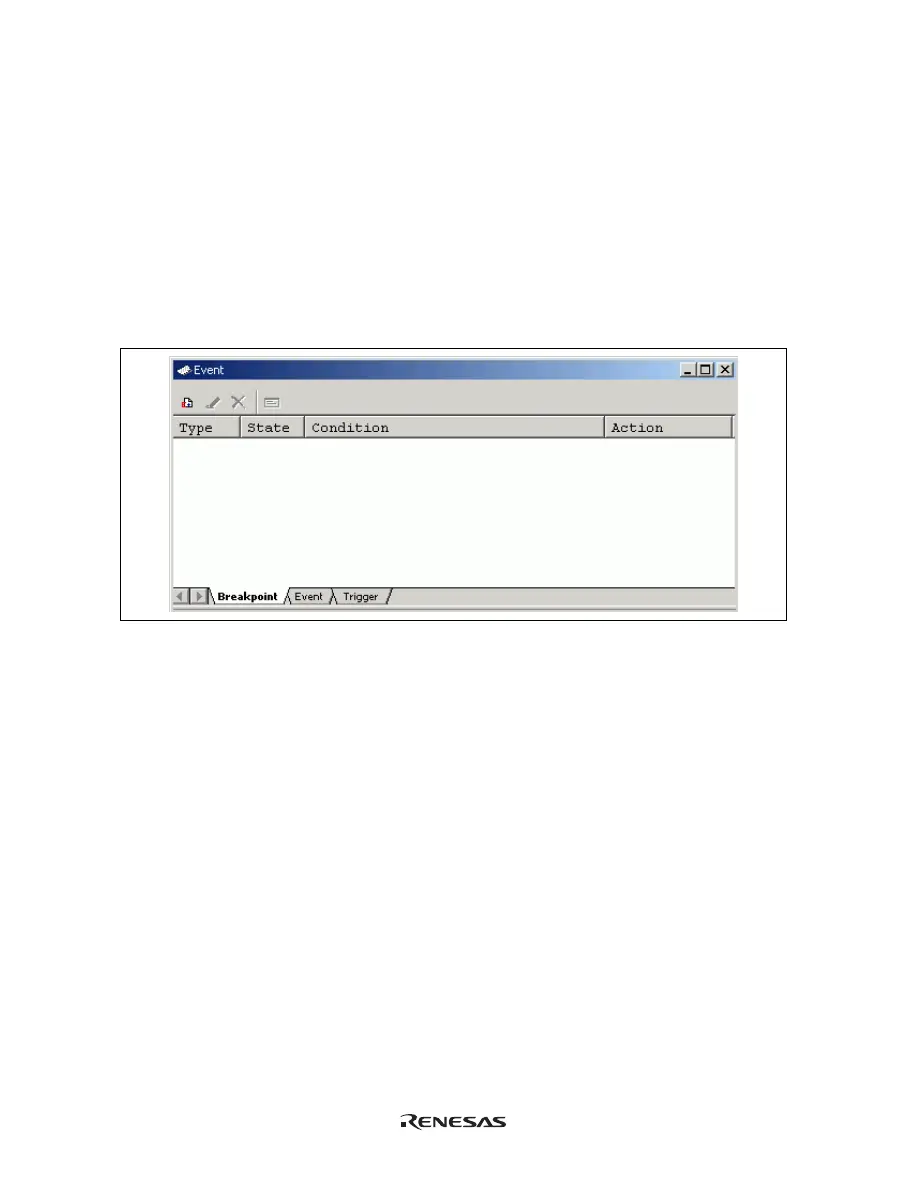

Figure 6.30 [Event] Window (Before Setting a Software Breakpoint)
• Click the [Event] window with the right-hand mouse button and select [Add…] from the popup menu.
• The [Breakpoint/Event Properties] dialog box is displayed.
