5.1.5 Changing the Memory Map Setting
Clicking the [Add…] button on the [Memory Mapping] dialog box or clicking the [Modify…] button after
selecting the information on the memory map setting you want to change opens the [Edit Memory Mapping]
dialog box.

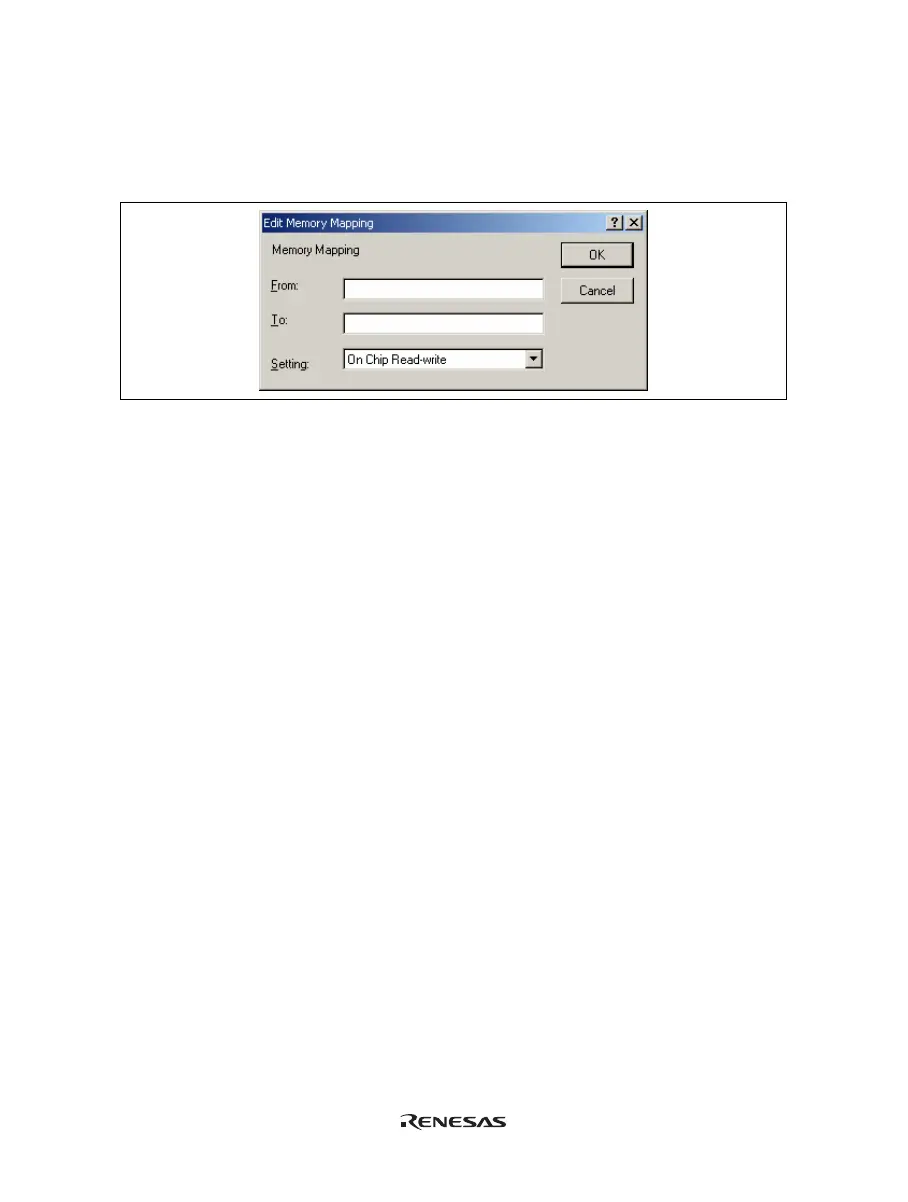

Figure 5.5 [Edit Memory Mapping] Dialog Box
Use this dialog box to change the address range and attributes of a memory map.
[From]: Enter the start address of the map range.
[To]: Enter the end address of the map range.
[Setting]: Enter the memory map setting.
The choices given are listed below. The User (external memory) and Emulator (emulation
memory) attributes can be modified.
• On-chip Read-write (Cannot be changed)
• On-chip Read-only (Cannot be changed)
• On-chip Guarded (Cannot be changed)
• User Read-write (Cannot be selected when the single chip mode is selected.)
• User Read-only (Cannot be selected when the single chip mode is selected.)
• User Guarded
• Emulator Read-write
• Emulator Read-only
• Emulator Guarded
