129

6.8 Referring to Symbols

The [Label] window can be used to display the information on symbols in modules.

Select [Label] from the [Symbol] submenu of the [View] menu. The [Label] window is displayed so that the user

can refer to the addresses of symbols in modules.

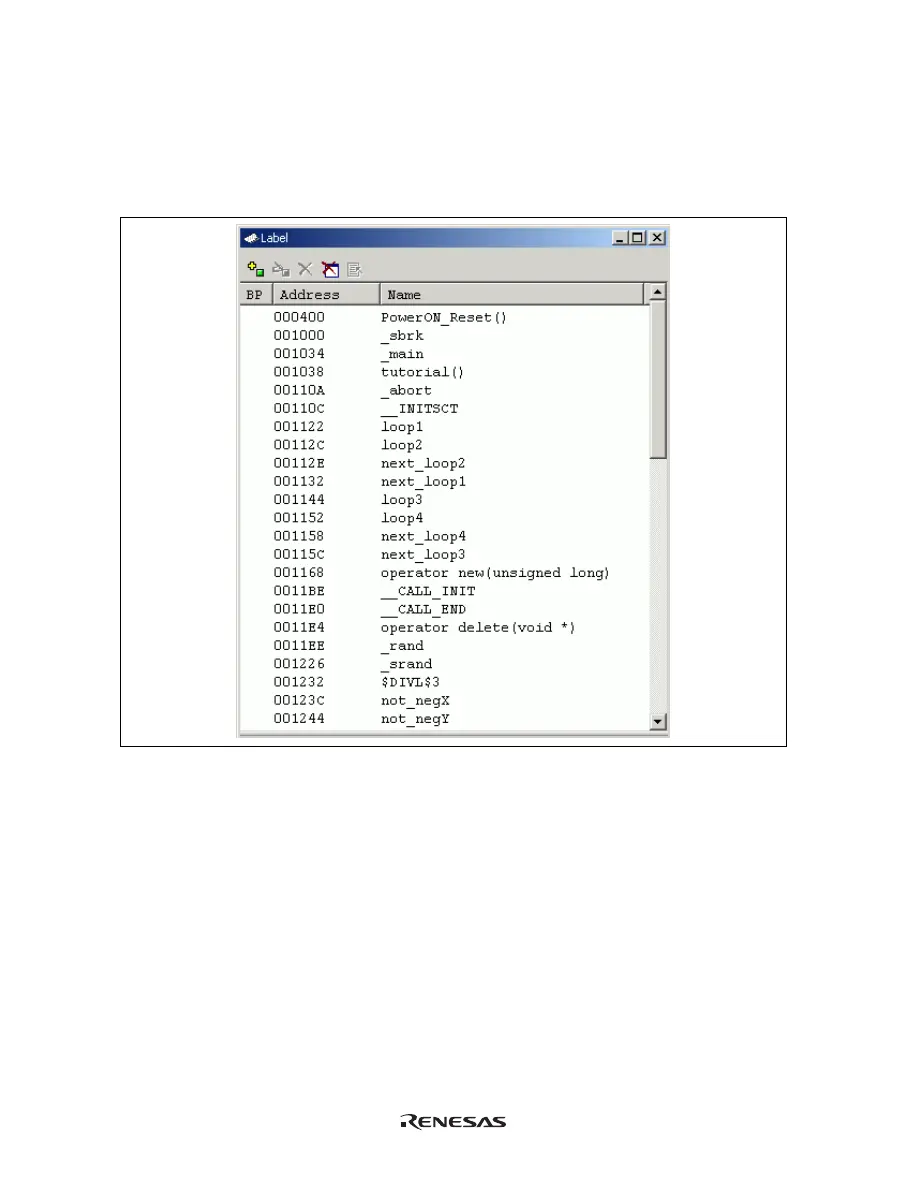

Figure 6.11 [Label] Window
