Renesas H8 Series User Manual

151
(2) Register an address as an event condition for trace acquisition. Click the [Add…] button in the [Trace
Events] group box on the [General] page to display the [Breakpoint/Event Properties] dialog box.

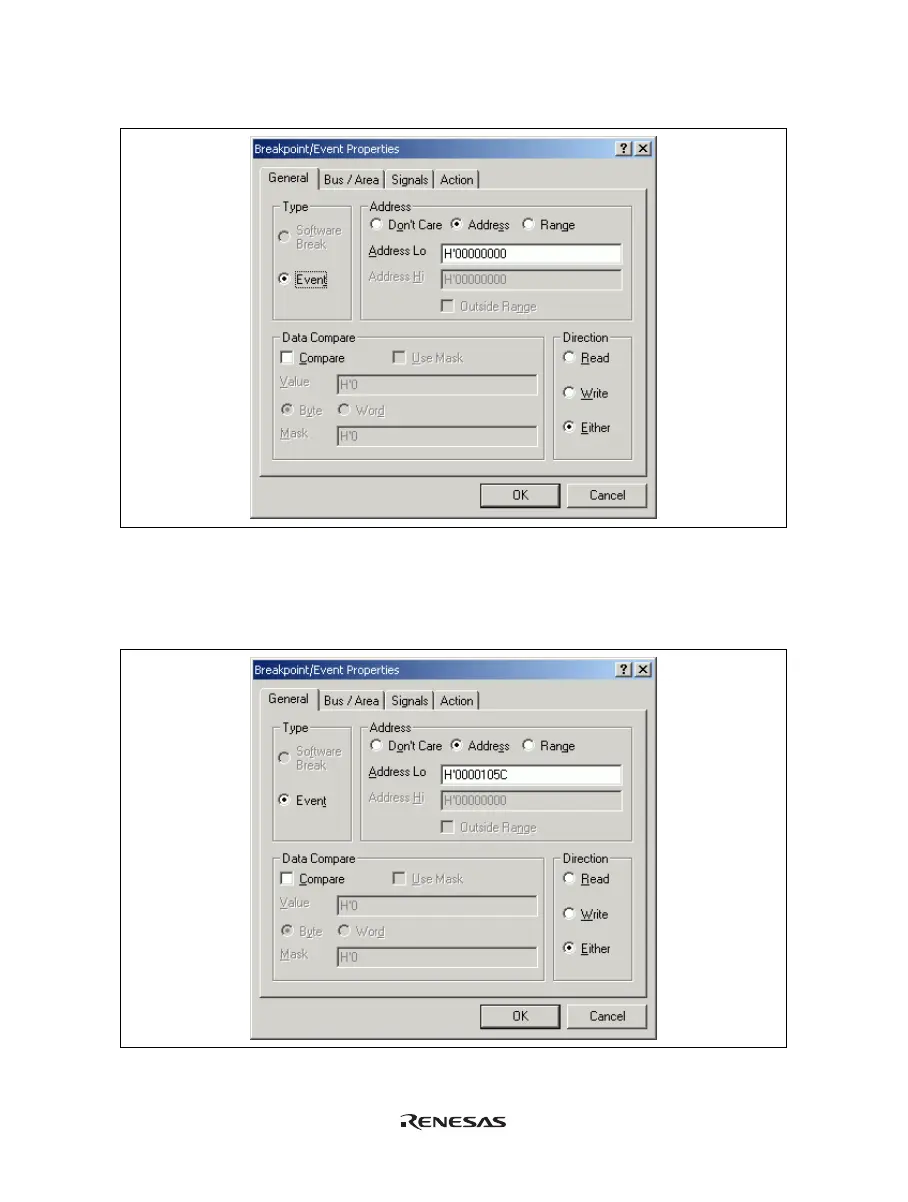

Figure 6.42 [Breakpoint/Event Properties] Dialog Box
(3) Use the [Editor] window to refer to the address on the line that has ‘a[i]=j;’ within the tutorial function
and enter this address in the [Address Lo] edit box of the [Address] group box on the [General] page of the
[Breakpoint/Event Properties] dialog box. In this example, enter H'0000105c. This address has thus been
set. Click the [OK] button to close the [Breakpoint/Event Properties] dialog box.
Figure 6.43 [Breakpoint/Event Properties] Dialog Box (after Setting an Event)
