152

(4) The event that has been set is now displayed in the [Event] combo box of the [Trace Events] group box on

the [General] page of the [Trace Acquisition] dialog box.

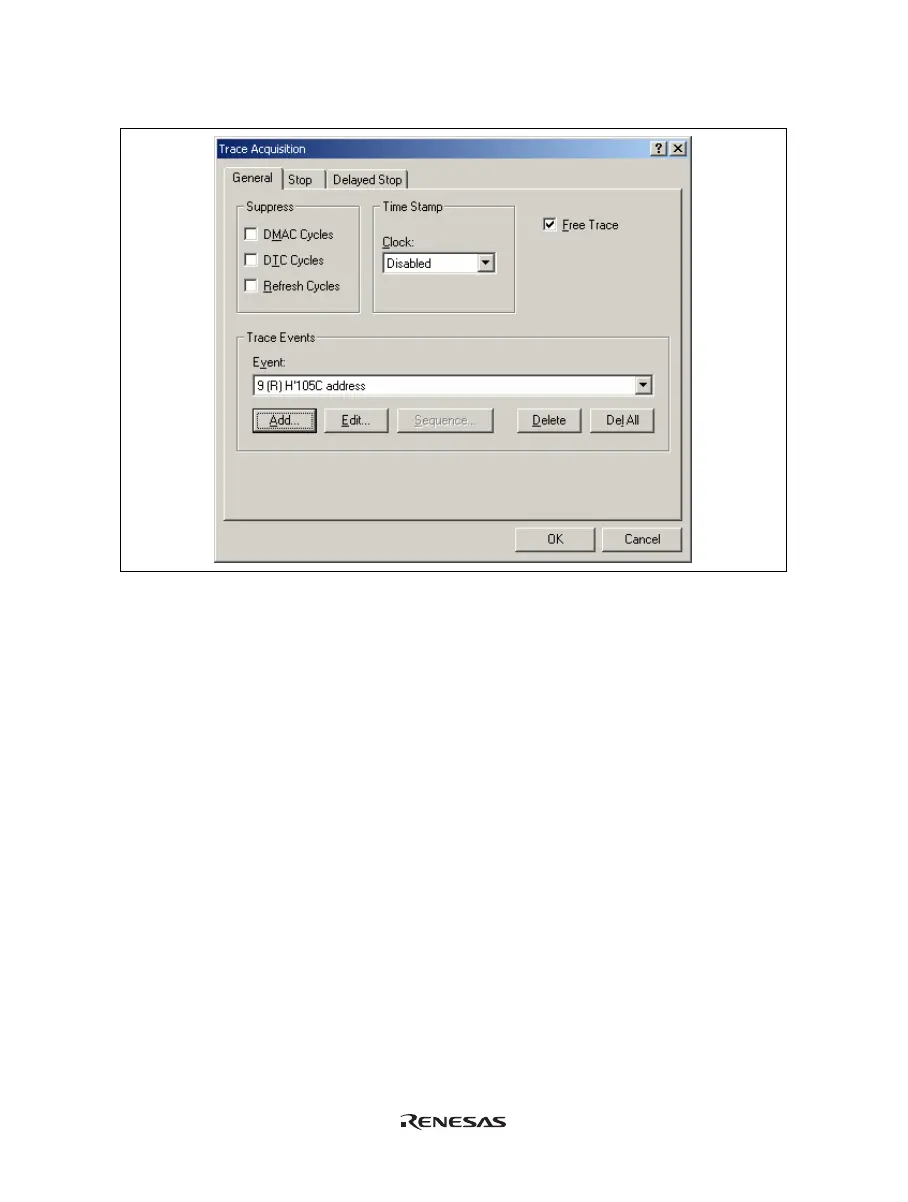

Figure 6.44 [Trace Acquisition] Dialog Box (Adding an Event)
