153

(5) To enable the event condition that has been set, uncheck the [Free Trace] check box on the [General] page.

This will add pages [1] to [4] to the [Trace Acquisition] dialog box.

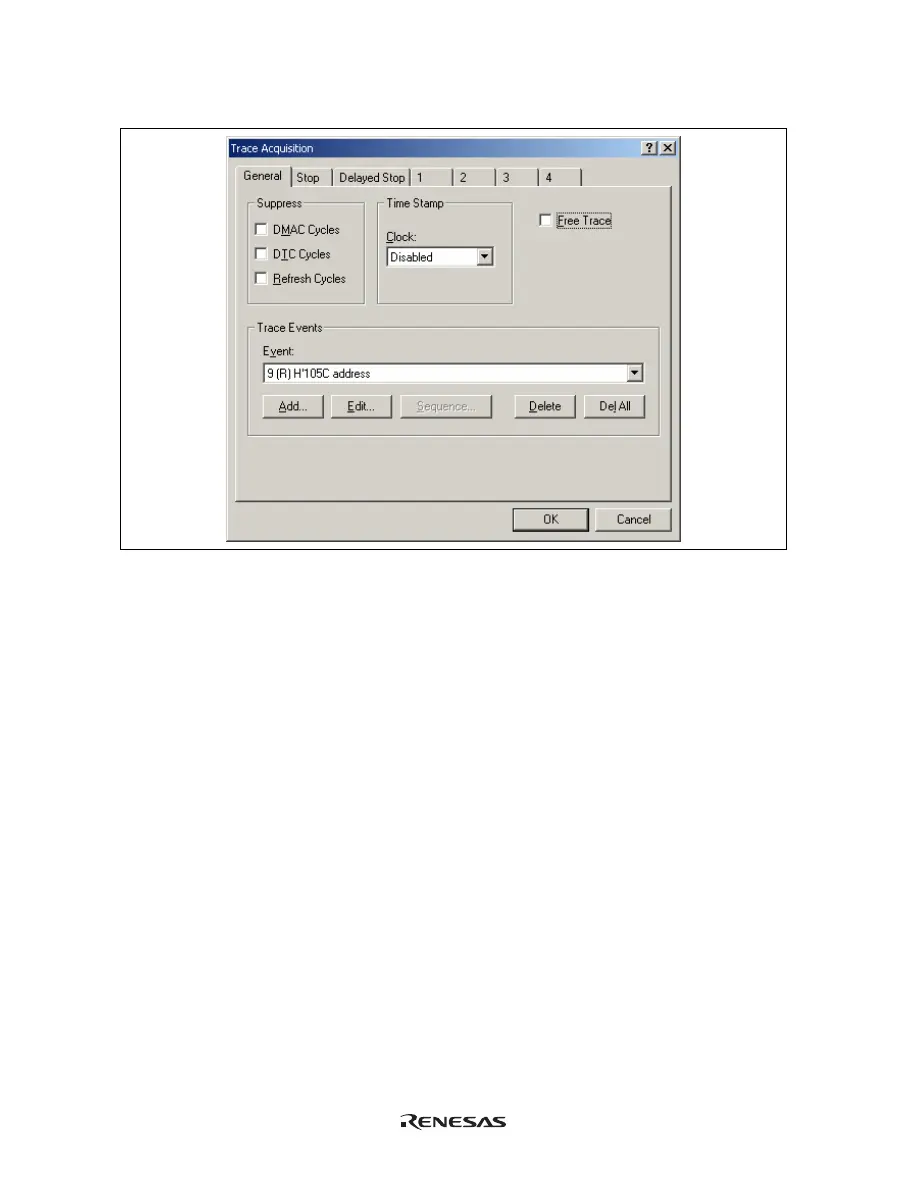

Figure 6.45 [Trace Acquisition] Dialog Box (Pages Added)
